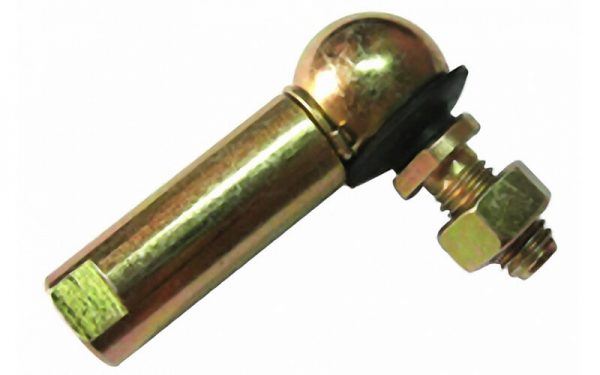

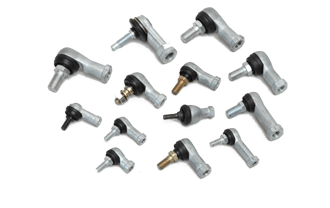

Ball housing,low carbon steel,zinc plated,
Ball stud,low carbon steel,zinc plated,
Clip,spring steel.
Alternative:stainless steel AISI304,AISI316 are available upon request
Ball housing with or without spanner surface upon request.
With or without sealing cap upon request.
Left-hand thread in the housing possible.for fine-pitch thread,please add FG,(ex.CSL16M10FGx45)
if you need to speak to us about general query fill in the form below
and we will call you back within the same working day.

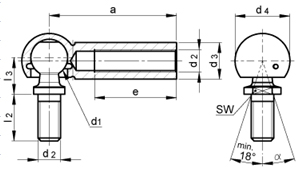

| Part No. | d1 | Thread | a | d3 | d4 | e | l2 | l3 | SW | α | Weight |
| h9 | d2 | ±0,3 | ±0,5 | ±0,5 | min. | ±0,3 | ±0,3 | h14 | ≈ | kg/piece ≈ | |
| CSL8M5x35 | 8 | M 5 | 35 | 8 | 10,6 | 19,5 | 10,2 | 9 | 7 | 10° | 0.017 |
| CSL10M6x37 | 10 | M 6 | 37 | 10 | 12,8 | 25 | 12,5 | 11 | 8 | 10° | 0.03 |
| CSL10M6x40 | 40 | 27 | 0.032 | ||||||||
| CSL13M8x45 | 13 | M 8 | 45 | 13 | 14,8 | 29 | 16,5 | 13 | 11 | 15° | 0.062 |
| CSL16M10x45 | 16 | M 10 | 45 | 16 | 19,3 | 25,5 | 20 | 16 | 13 | 15° | 0.106 |
| CSL16M10x52 | 52 | 30,5 | 0.114 | ||||||||
| CSL16M12x45 | 16 | M 12 | 45 | 16 | 24 | 25,5 | 20 | 16 | 13 | 15° | 0.11 |
| CSL16M12x52 | 52 | 30,5 | 0.117 | ||||||||
| CSL19M14x70 | 19 | M 14 x 1,5 | 70 | 22 | 30 | 44 | 28 | 20 | 16 | 15° | 0.26 |
| M 14 | |||||||||||
| CSL19M16x70 | M 16 |
