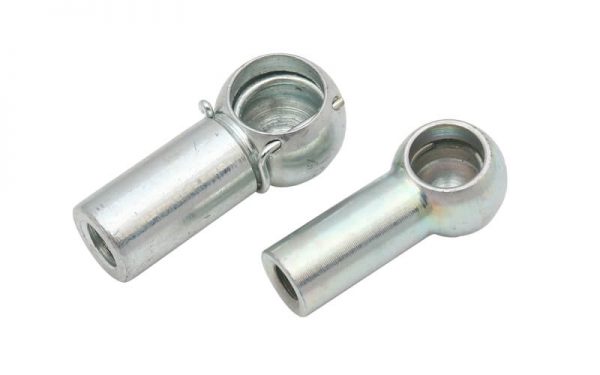

Material,low carbon steel.
Alternative,stainless steel 304 or 316
Surface protection,zinc plate,withe/white-blue or yellow passivated.
The manufacturer reserves the right to supply the ball socket with or without spanner surface.
left hand thread in the housing are availa ble.
Dimensions are in mm.
Special versions upon request.
if you need to speak to us about general query fill in the form below
and we will call you back within the same working day.

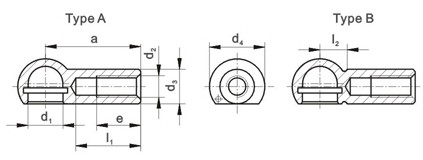

| d1 | d2 | a | d3 | d4 | e | l1 | l2 | Weight | |
| Kg/1000pcs for type | |||||||||
| ±0.3 | ±0.5 | ±0.5 | min. | max. | ±0.4 | A | B | ||
| 8 | M5 | 22 | 8 | 12.8 | 10.2 | 15 | 6.3 | 9 | 8.8 |
| 10 | M6 | 25 | 10 | 14.8 | 11.5 | 17 | 7 | 14.2 | 14.1 |
| 13 | M8 | 30 | 13 | 19.3 | 14 | 20 | 9.1 | 29 | 28.8 |
| 16 | M10 | 35 | 16 | 24 | 15.5 | 22 | 11.4 | 57 | 56.8 |
| M12 | |||||||||
| 19 | M14 | 45 | 22 | 30 | 21.5 | 28 | 12.5 | 125 | 124.8 |
Material,medium carbon steel.
Alternative,stainless steel
Surface protection,zinc plate,withe/white-blue or yellow passivated.
The manufacturer reserves the right to supply the ball socket with or without spanner surface.
left hand thread in the housing are availa ble.
Dimensions are in mm.
Special versions upon request.
if you need to speak to us about general query fill in the form belowand we will call you back within the same working day.
