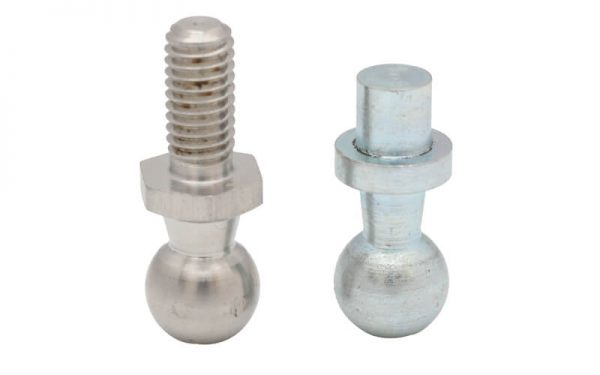

Material:Low carbon steel,
Alternative,stainless steel 304 or 316.
Ball hardened ≥52HRC or≥550HV 30.
Surface protection,zinc plate,withe/white-blue or yellow passivated.
Left hand thread in the housing are available.
Dimensions are in mm.
Special versions upon request.

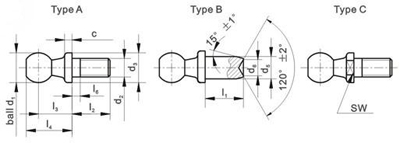

| d1 | d2 | l1 | c | d3 | d5 | d6 | l2 | l3 | l4 | l5 | SW | Weight | |
| Kg/1000pcs | |||||||||||||
| h9 | ±0.2 | 0.4/0 | h14 | h11 | 0/-0.4 | ±0.3 | ±0.3 | ±0.3 | max | h14 | A and C | B | |
| 8 | M5 | 4 | 2 | 8 | 5 | 3 | 10.2 | 9 | 12.5 | 4 | 7 | 4.55 | 3.85 |
| 7.5 | 4.35 | ||||||||||||
| 10 | M6 | 4.5 | 2.2 | 10 | 6 | 4 | 12.5 | 11 | 15.5 | 4 | 8 | 8.50 | 7.10 |
| 8 | 7.80 | ||||||||||||
| 13 | M8 | 5 | 2.4 | 13 | 8 | 6 | 16.5 | 13 | 18.5 | 5.3 | 11 | 17.70 | 14.20 |
| 10 | 16.00 | ||||||||||||
| 16 | M10 | 6 | 2.7 | 16 | 10 | 8 | 20 | 16 | 23 | 7.3 | 13 | 35.10 | 23.50 |
| M12 | 13 | 29.60 | |||||||||||
| 19 | M14 | 12 | 3 | 19 | 14 | 10 | 28 | 20 | 28.5 | 10.8 | 16 | 71.20 | 56.20 |
| M16 | 18 | 63.70 | |||||||||||
