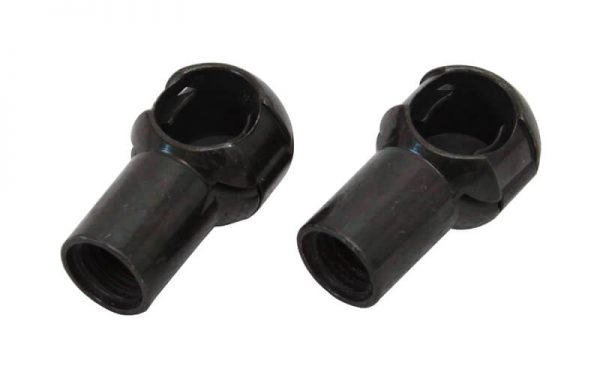

Special Ball Socket with slit

SEND INQUIRY

if you need to speak to us about general query fill in the form belowand we will call you back within the same working day.

SERVICE

CONTACT

Unit 403, No.15,Jiefang South Road, Ningbo 315010,China

Tel: +86-574-87676065

Fax: +86-574-87675899

Skype: fusco.fsk

Whatsapp: +86-13586528620

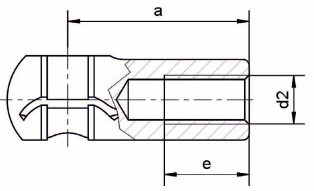

Part No.	Ball Dia.	length to the center of the ball (a)	Thread	Depth of Thread e	Radial Trigger Force	Axial Trigger Force
FG1001	10	18	M6	≥8	≥1200	≥3500
FG1002	10	18	M8	≥8.5	≥1200	≥3500
FG1003	10	19	M6	≥8.5	≥1200	≥3500
FG1004	10	25	M6	11.5	≥1200	≥3500
FG1301	13	30	M8	14
FG1302	13	25	M8	9
