Clevis with Male Thread GM

SEND INQUIRY

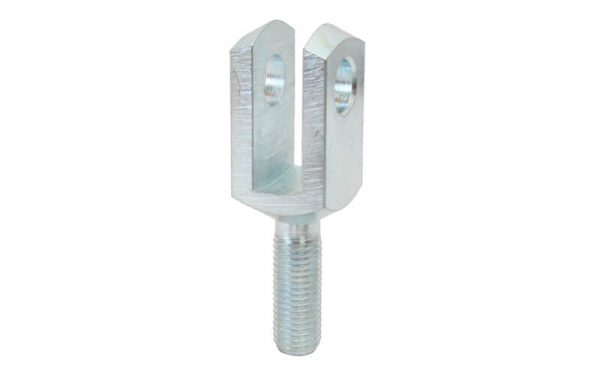

Clevis with Male Thread GM
  • Code for thread

    Regular thread no code

    Regular thread,left-handed LH

    Fine-pitch thread FG

    Fine-pitch thread,left-handed FGLH

    Material

    low carbon steel Q235A or higher level steel

    Surface protection

    Blue zinc plated,yellow zinc plated,phosphatised oiled,chromeplated,or upon request.

    Alternative:stainless steel AISI304,316,316L,etc

  •

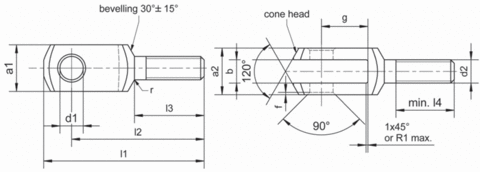

  • Part No.d1ga1a2bd2fl1l2l3l4rWeight
    H9±0.5h11+0.3
    -0.16
    =0.7
    +0.15
    Regular threadfine-pitch thread±0.2±0.2±0.4±0.3(kg)/piece
    GM6x1261212126M6x1.00.5443720150.80.015
    GM8x1681616168M8x1.250.5574725200.80.036
    GM10x201020202010M10x1.50.5695730250.80.068
    GM12x241224242412M12x1.750.5826835300.80.122
    GM14x281428272714M14x2.01947840351.20.171
    GM16x321632323216M16x2.011088945401.20.288
    GM20x402040404020M20x2.5113410955501.50.550
