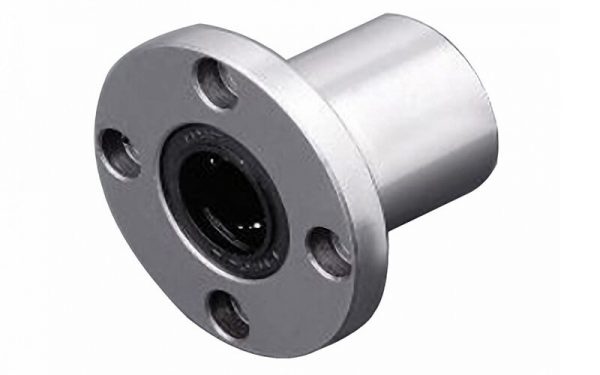

Flanged Linear Ball Bearing LMBF…UU
This type is a inch dimension series generally used in America.

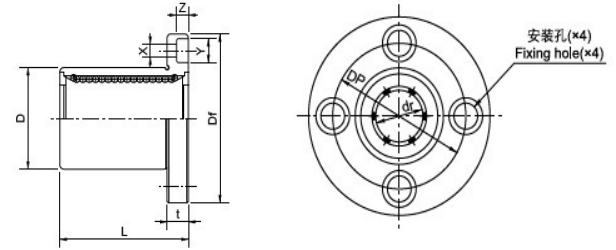

圆法兰 LMBF...UU	主要尺寸和公差 Main dimensions and tolerance （T）													偏心Eccentricity Inch μ m	垂直度Squareness Inch μ m	额定负荷 Basic load rating		重量 Weight (gf)
	dr		D		L		法兰 Flange									动负荷 Dynamic C N	静负荷 Static Co N
	inch mm	公差T inch μ m	inch mm	公差T inch μ m	inch mm	公差T inch μ m	Df inch mm	K inch mm	t inch mm	Dp inch mm	X inch mm	Y inch mm	Z inch mm
LMBF4UU	.2500 6.350	0 ﹣.00040 0 -9	.5000 12.700	0 ﹣.00045 0 -11	.7500 19.050	±.012 ±300	1.2500 31.750	1.0000 25.400	0.219 5.556	.8750 22.225	.1560 3.969	.2500 6.350	.1410 3.572	0.0005 12	0.0005 12	206	265	32



LMBF6UU	.3750 9.525		.6250 15.875	0 ﹣.00050 0 -13	.8750 22.225		1.5000 38.100	1.2500 31.750	.2500 6.350	1.0620 26.988	.1875 4.763	.2970 7.541	.1720 4.366			225	314	47

LMBF8UU	.5000 12.700		.8750 22.225		1.2500 31.750	0 ﹣.008 0 ﹣200	1.7500 44.450	1.3750 34.925	.2500 6.350	1.312 33.338	.1875 4.763	.2970 7.541	.1720 4.366			510	784	88

LMBF10UU	.6250 15.875		1.1250 28.575		1.500 38.100		2.0000 50.800	1.5000 38.100	.2500 6.350	1.5620 39.688	.1875 4.763	.2970 7.541	.1720 4.366			774	1,180	140

LMBF12UU	.7500 19.050	0 ﹣.00040 0 -10	1.2500 31.750	0 ﹣.00065 0 -16	1.6250 41.275		2.1875 55.563	1.6875 42.863	.3125 7.938	1.7180 43.660	.2187 5.556	.3440 8.731	.2030 5.159	0.0006 15	0.0006 15	862	1,370	190

LMBF16UU	1.0000 25.400		1.5625 39.688		2.2500 57.150	0 ﹣.012 0 -300	2.5000 63.500	2.0000 50.800	.3125 7.938	2.0310 51.594	.2187 5.556	.3440 8.731	.2030 5.159			980	1,570	325

LMBF20UU	1.2500 31.750	0 ﹣.00050 0 -12	2.0000 50.800	0 ﹣.00075 0 -19	2.6250 66.675		3.1250 79.375	2.5000 63.500	.3750 9.525	2.5625 65.088	.2812 7.144	.4060 10.319	.2656 6.747	0.0008 20	0.0008 20	1,570	2,740	665

LMBF24UU	1.5000 38.100		2.3750 60.325		3.0000 76.200		3.7500 95.250	3.0000 76.200	.5000 12.700	3.0625 77.788	.3440 8.731	.5000 12.700	.3280 8.334			2,180	4,020	1100

LMBF32UU	2.0000 50.800		3.0000 76.200	0 ﹣.00090 0 -22	4.0000 101.600		4.3750 111.125	3.5000 88.900	.5000 12.700	3.6875 93.662	.3440 8.731	.5000 12.700	.3280 8.334	0.001 25	0.001 25	3,820	7,940	1760

LMBF40UU	2.5000 63.500	0 ﹣.00060 0 -15	3.7500 95.250		5.0000 127.000		5.3750 136.525	4.3750 111.125	.7500 19.050	4.5625 115.887	.4062 10.319	.6250 15.875	.3750 9.525			4,700	10,000	3570

LMBF48UU	3.0000 76.200		4.5000 114.300		6.0000 152.400	0 ﹣.016 0 -400	6.1250 155.575	5.0000 127.000	.7500 19.050	5.3125 134.937	.4062 10.319	.6250 15.875	.3750 9.525			7,350	16,000	5600

LMBF64UU	4.0000 101.600	0 ﹣.00080 0 -20	6.0000 152.400	0 ﹣.00100 0 ﹣25	8.0000 203.200		8.0000 203.200	6.7500 171.450	.8750 22.225	7.0000 177.800	.5000 12.700	.7125 18.097	.5000 12.700	0.0012 30
