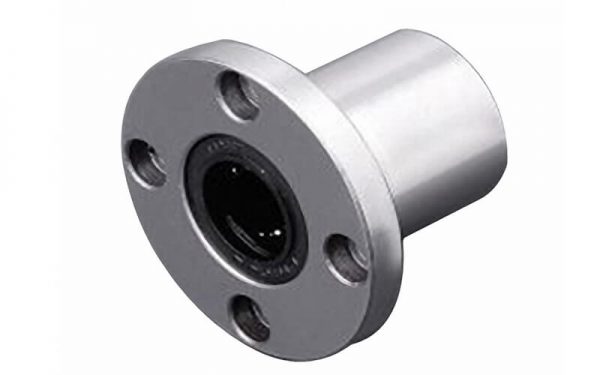

Flanged Linear Ball Bearing LMEF…UU
This type is a metric dimension series generally used in Europe.

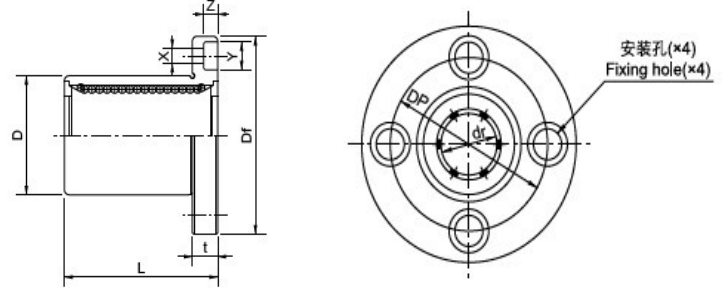

| 圆法兰 LMEF…UU | 主要尺寸和公差 Main dimensions and tolerance (T) | 偏心Eccentricity μ m | 垂直度Squareness μ m | 额定负荷 Basic load rating | 重量 Weight (gf) | |||||||||||||
| dr | D | L | 法兰Flange | 动负荷 Dynamic C N | 静负荷 Static Co N | |||||||||||||
| mm | 公差T μ m | mm | 公差T μ m | mm | 公差T μ m | Df mm | K mm | t mm | Dp mm | X mm | Y mm | Z mm | ||||||
| LMEF5UU | 5 | ﹢8 0 | 12 | 0 ﹣8 | 22 | ±300 | 28 | 22 | 5 | 20 | 3.5 | 6 | 3.1 | 12 | 12 | 206 | 265 | 26 |
| LMEF8UU | 8 | 16 | 25 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 265 | 402 | 41 | |||||
| LMEF12UU | 12 | 22 | 0 ﹣9 | 32 | 0 ﹣200 | 42 | 32 | 6 | 32 | 4.5 | 7.5 | 4.1 | 510 | 784 | 80 | |||
| LMEF16UU | 16 | ﹢9 ﹣1 | 26 | 36 | 46 | 35 | 6 | 36 | 4.5 | 7.5 | 4.1 | 578 | 892 | 103 | ||||
| LMEF20UU | 20 | 32 | 0 ﹣11 | 45 | 54 | 42 | 8 | 43 | 5.5 | 9 | 5.1 | 15 | 15 | 862 | 1,370 | 182 | ||
| LMEF25UU | 25 | ﹢11 ﹣1 | 40 | 58 | 0 ﹣300 | 62 | 50 | 8 | 51 | 5.5 | 9 | 5.1 | 980 | 1,570 | 335 | |||
| LMEF30UU | 30 | 47 | 68 | 76 | 60 | 10 | 62 | 6.6 | 11 | 6.1 | 1,570 | 2,740 | 560 | |||||
| LMEF40UU | 40 | ﹢13 ﹣2 | 62 | 0 ﹣13 | 80 | 98 | 75 | 13 | 80 | 9 | 14 | 8.1 | 17 | 17 | 2,160 | 4,020 | 1175 | |
| LMEF50UU | 50 | 75 | 100 | 112 | 88 | 13 | 94 | 9 | 14 | 8.1 | 3,820 | 7,940 | 1745 | |||||
| LMEF60UU | 60 | 90 | 0 ﹣15 | 125 | 0 ﹣400 | 134 | 106 | 18 | 112 | 11 | 17 | 11 | 20 | 20 | 4,700 | 9,800 | 3220 | |
| LMEF80UU | 80 | ﹢16/-4 | 120 | 165 | 164 | 136 | 18 | 142 | 11 | 17 | 11 | 7,350 | 16,000 | 6420 | ||||
