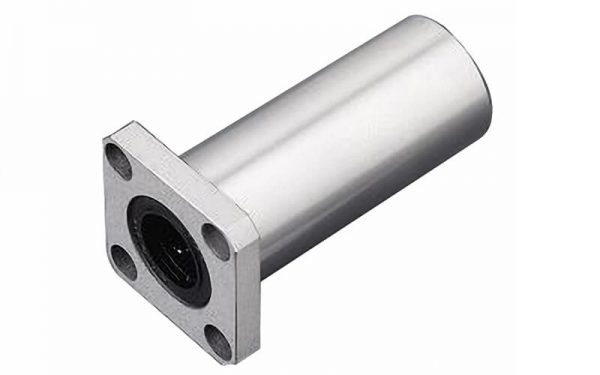

Flanged Linear Ball Bearing LMEK…LUU
This type is a inch dimension series generally used in America.

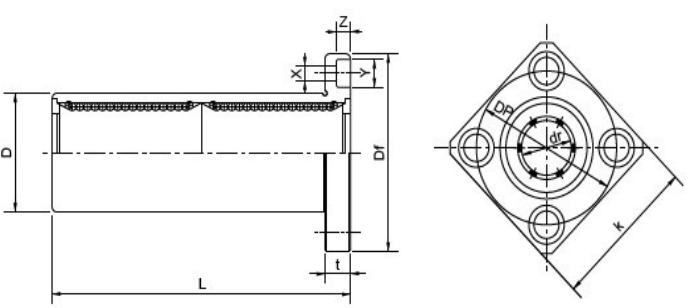

| 加长方法兰LMEK...LUU | 主要尺寸和公差 Main dimensions and tolerance (T) | 偏心Eccentricity μ m | 垂直度Squareness μ m | 额定负荷 Basic load rating | 重量 Weight (gf) | |||||||||||||
| dr | D | L | 法兰Flange | 动负荷 Dynamic C N | 静负荷 Static Co N | |||||||||||||
| mm | 公差T μ m | mm | 公差T μ m | mm | 公差T μ m | Df mm | K mm | t mm | Dp mm | X mm | Y mm | Z mm | ||||||
| LMEK8LUU | 8 | ﹢9 ﹣1 | 16 | 0/﹣9 | 46 | ±300 | 32 | 25 | 5 | 24 | 4 | 6 | 3 | 15 | 15 | 421 | 804 | 51 |
| LMEK12LUU | 12 | 22 | 0 ﹣11 | 61 | 0 ﹣300 | 42 | 32 | 6 | 32 | 5 | 7.5 | 4 | 813 | 1,570 | 90 | |||
| LMEK16LUU | 16 | ﹢11 ﹣1 | 26 | 68 | 46 | 35 | 6 | 36 | 5 | 7.5 | 4 | 912 | 1,780 | 135 | ||||
| LMEK20LUU | 20 | 32 | 0 ﹣13 | 80 | 54 | 42 | 8 | 43 | 6 | 9 | 5 | 17 | 17 | 1,370 | 2,740 | 225 | ||
| LMEK25LUU | 25 | ﹢13 ﹣2 | 40 | 112 | 0 ﹣400 | 62 | 50 | 8 | 51 | 6 | 9 | 5 | 1,570 | 3,140 | 500 | |||
| LMEK30LUU | 30 | 47 | 123 | 76 | 60 | 10 | 62 | 7 | 11 | 6 | 2,500 | 5,490 | 720 | |||||
| LMEK40LUU | 40 | ﹢16 ﹣4 | 62 | 0 ﹣15 | 151 | 98 | 75 | 13 | 80 | 9 | 14 | 8 | 20 | 20 | 3,430 | 8,040 | 1600 | |
| LMEK50LUU | 50 | 75 | 192 | 112 | 88 | 13 | 94 | 9 | 14 | 8 | 6,080 | 15,900 | 2620 | |||||
| LMEK60LUU | 60 | 90 | 0/﹣20 | 209 | 134 | 106 | 18 | 112 | 11 | 17 | 11 | 25 | 25 | 7,550 | 20,000 | 4480 | ||
