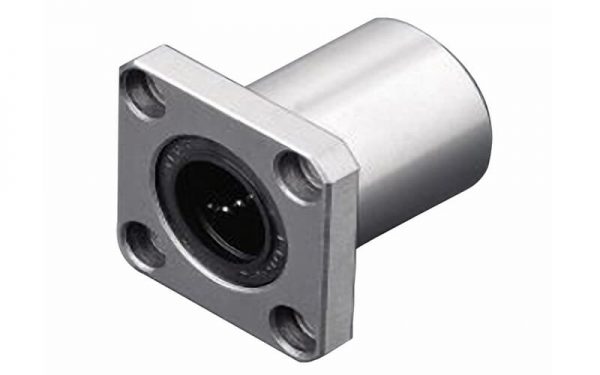

Flanged Linear Ball Bearing LMEK…UU
This type is a inch dimension series generally used in America.

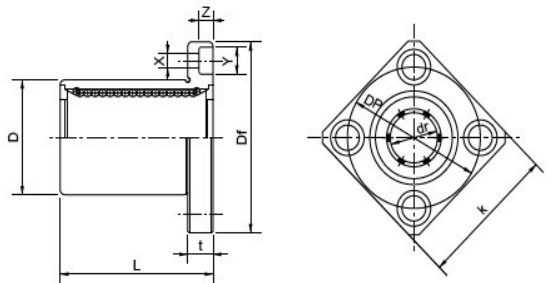

方法兰 LMEF…UU	主要尺寸和公差 Main dimensions and tolerance (T)													偏心Eccentricity μ m	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
	dr		D		L		法兰Flange									动负荷 Dynamic C N	静负荷 Static Co N
	mm	公差T μ m	mm	公差T μ m	mm	公差T μ m	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			动负荷 Dynamic C N	静负荷 Static Co N
LMEK5UU	5	﹢8 0	12	0 ﹣8	22	±300	28	22	5	20	3.5	6	3.1	12	12	206	265	20
LMEK8UU	8		16	0 ﹣8	25	±300	32	25	5	24	3.5	6	3.1			265	402	33
LMEK12UU	12		22	0 ﹣9	32	0 ﹣200	42	32	6	32	4.5	7.5	4.1			510	784	64
LMEK16UU	16	﹢9 ﹣1	26	0 ﹣9	36		46	35	6	36	4.5	7.5	4.1			578	892	90
LMEK20UU	20	﹢9 ﹣1	32	0 ﹣11	45		54	42	8	43	5.5	9	5.1	15	15	862	1,370	147
LMEK25UU	25	﹢11 ﹣1	40		58	0 ﹣300	62	50	8	51	5.5	9	5.1			980	1,570	295
LMEK30UU	30	﹢11 ﹣1	47		68		76	60	10	62	6.6	11	6.1			1,570	2,740	465
LMEK40UU	40	﹢13 ﹣2	62	0 ﹣13	80		98	75	13	80	9	14	8.1	17	17	2,160	4,020	975
LMEK50UU	50		75	0 ﹣13	100		112	88	13	94	9	14	8.1	17	17	3,820	7,940	1545
LMEK60UU	60		90	0 ﹣15	125	0 ﹣400	134	106	18	112	11	17	11	20	20	4,700	9,800	2780
LMEK80UU	80	﹢16/-4	120	0 ﹣15	165	0 ﹣400	164	136	18	142	11	17	11	20	20	7,350	16,000	5920
