LMFM..LUU Flanged Linear Bushings, Flanged Linear Bushings

LMFM..LUU

SEND INQUIRY

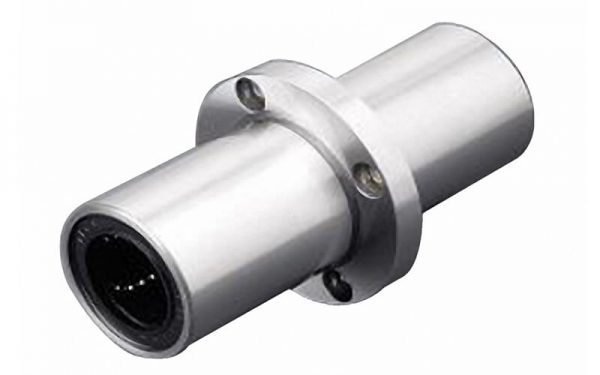

Flanged Linear Ball Bearing LMFM…LUU
This type is a metric dimension series generally used in Asia and other countries.

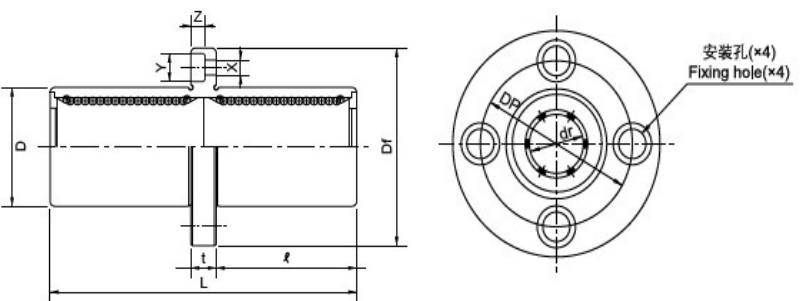

加长中间圆法兰 LMFM…LUU	主要尺寸和公差 Main dimensions and tolerance(T)														偏心Eccentricity μ m	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
	dr		D		L		法兰Flange										动负荷 Dynamic C N	静负荷 Static Co N
	mm	公差T μ m	mm	公差T μ m	mm	公差T μ m	l mm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			动负荷 Dynamic C N	静负荷 Static Co N
LMFM6LUU	6	0 ﹣10	12	0 -13	35	±300	15	28	22	5	20	3.5	6	3.1	15	15	323	529	31
LMFM8LUU	8		15		45		20	32	25	5	24	3.5	6	3.1			431	784	51
LMFM10LUU	10		19		55		25	40	30	6	29	4.5	8	4.1			588	1,100	98
LMFM12LUU	12		21		57	0 ﹣300	26	42	32	6	32	4.5	8	4.1			813	1,570	110
LMFM13LUU	13		23	0 -16	61		28	43	34	6	33	4.5	8	4.1			813	1,570	130
LMFM16LUU	16		28	0 -16	70		32	48	37	6	38	4.5	8	4.1			1,230	2,350	190
LMFM20LUU	20	0 ﹣12	32	0 -19	80		36	54	42	8	43	5.5	9	5.1	20	20	1,400	2,740	260
LMFM25LUU	25		40		112	0 ﹣400	52	62	50	8	51	5.5	9	5.1			1,560	3,140	540
LMFM30LUU	30		45		123		57	74	58	10	60	6.6	11	6.1			2,490	5,490	680
LMFM35LUU	35	0 -15	52	0 -22	135		63	82	64	10	67	6.6	11	6.1	25	25	2,650	6,270	1,020
LMFM40LUU	40		60		151		69	96	75	13	18	9	14	8.1			3,430	8,040	1,570
LMFM50LUU	50		80		192		90	116	92	13	98	9	14	8.1			6,080	15,900	3,600
LMFM60LUU	60	0/-20	90	0/-25	209		96	134	106	18	112	11	17	11	30	30	7,550	20,000	4,500
