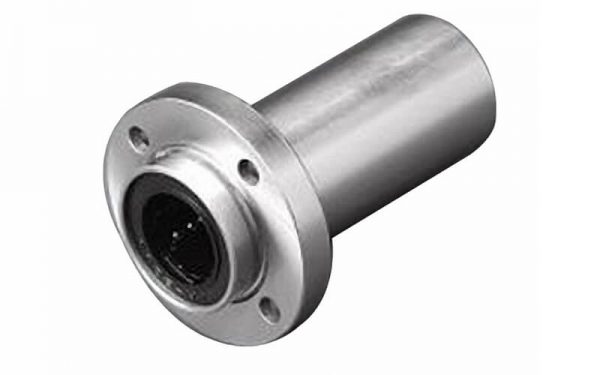

Flanged Linear Ball Bearing LMFP…LUU
This type is a metric dimension series generally used in Asia and other countries.

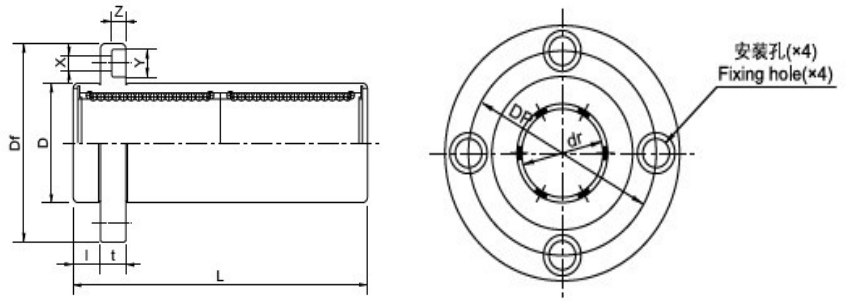

加长导向圆法兰 LMFP…LUU	主要尺寸和公差 Main dimensions and tolerance (T)														偏心Eccentricity μ m	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
	dr		D		L		法兰Flange										动负荷 Dynamic C N	静负荷 Static Co N
	mm	公差T μ m	mm	公差T μ m	mm	公差T μ m	l mm	Df mm	k mm	t mm	Dp mm	X mm	Y mm	Z mm			动负荷 Dynamic C N	静负荷 Static Co N
LMFP6LUU	6	0 ﹣10	12	0 ﹣13	35	±300	5	28	22	5	20	3.5	6	3.1	15	15	323	529	31
LMFP8LUU	8		15		45		5	32	25	5	24	3.5	6	3.1			431	784	51
LMFP10LUU	10		19		55		6	40	30	6	29	4.5	7.5	4.1			588	1,100	98
LMFP12LUU	12		21	0 ﹣16	57	0 ﹣300	6	42	32	6	32	4.5	7.5	4.1			813	1,570	110
LMFP13LUU	13		23		61		6	43	34	6	33	4.5	7.5	4.1			813	1,570	130
LMFP16LUU	16		28		70		6	48	37	6	38	4.5	7.5	4.1			1,230	2,350	190
LMFP20LUU	20	0 ﹣12	32	0 ﹣19	80		8	54	42	8	43	5.5	9	5.1	20	20	1,400	2,740	260
LMFP25LUU	25		40		112	0 ﹣400	8	62	50	8	51	5.5	9	5.1			1,560	3,140	540
LMFP30LUU	30		45		123		10	74	58	10	60	6.6	11	6.1			2,490	5,490	680
LMFP35LUU	35	0 ﹣15	52	0 ﹣22	135		10	82	64	10	67	6.6	11	6.1	25	25	2,650	6,270	1020
LMFP40LUU	40		60		151		13	96	75	13	18	9	14	8.1			3,430	8,040	1570
LMFP50LUU	50		80		192		13	116	92	13	98	9	14	8.1			6,080	15,900	3600
LMFP60LUU	60	0/-20	90	0/-25	209		18	134	106	18	112	11	17	11	30	30	7,550	20,000	4500
