LMH..LUU Flanged Linear Bushings, Flanged Linear Bushings

LMH..LUU

SEND INQUIRY

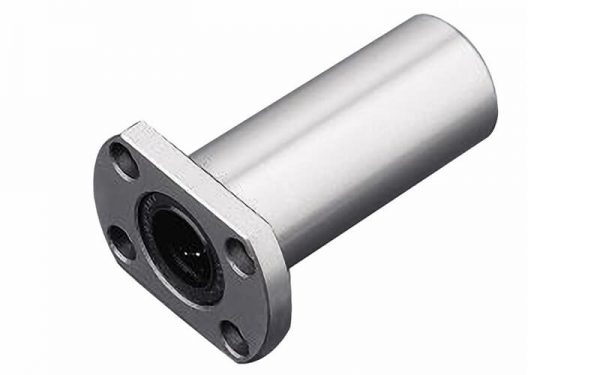

Flanged Linear Ball Bearing LMH…LUU
This type is a metric dimension series generally used in Asia and other countries.

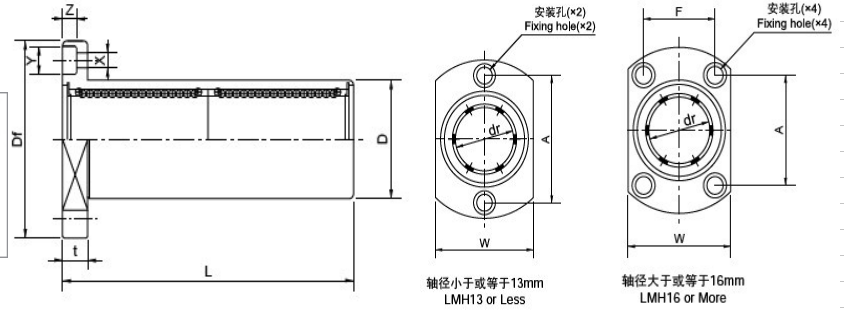

加长椭圆法兰 LMH…LUU	主要尺寸和公差 Main dimensions and tolerance (T)														偏心Eccentricity μ m	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
	dr		D		L		法兰 Flange										动负荷 Dynamic C N	静负荷 Static Co N
	mm	公差T μ m	mm	公差T μ m	mm	公差T μ m	Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			动负荷 Dynamic C N	静负荷 Static Co N
LMH6LUU	6	0 ﹣10	12	0 ﹣13	35	±300	28	18	5	20	﹣	3.5	6	3.1	15	15	323	529	28
LMH8LUU	8		15	0 ﹣13	45		32	21	5	24	﹣	3.5	6	3.1			431	784	47
LMH10LUU	10		19	0 ﹣16	55		40	25	6	29	﹣	4.5	7.5	4.1			588	1,100	90
LMH12LUU	12		21		57	0 ﹣300	42	27	6	32	﹣	4.5	7.5	4.1			813	1,570	102
LMH13LUU	13		23		61		43	29	6	33	﹣	4.5	7.5	4.1			813	1,570	123
LMH16LUU	16		28		70		48	34	6	31	22	4.5	7.5	4.1			1,230	2,350	182
LMH20LUU	20	0 ﹣12	32	0 ﹣19	80		54	38	8	36	24	5.5	9	5.1	20	20	1,400	2,740	247
LMH25LUU	25		40		112	0 ﹣400	62	46	8	40	32	5.5	9	5.1			1,560	3,140	525
LMH30LUU	30		45		123	0 ﹣400	74	51	10	49	35	6.6	11	6.1			2,490	5,490	645
