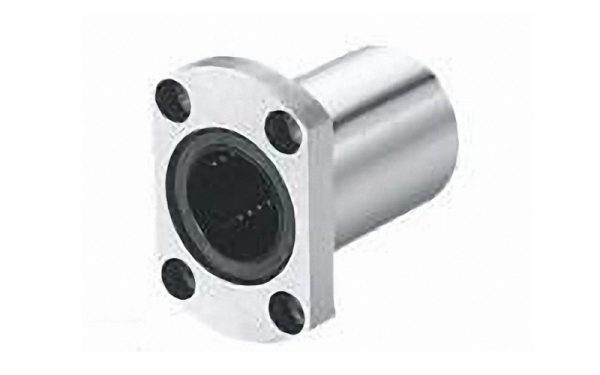

Flanged Linear Ball Bearing LMH…UU
This type is a metric dimension series generally used in Asia and other countries.

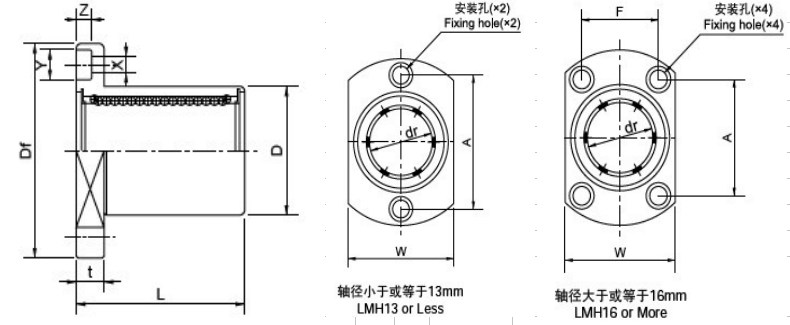

椭圆法兰 LMH…UU	主要尺寸和公差 Main dimensions and tolerance (T)														偏心Eccentricity μ m	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
	dr		D		L		法兰Flange										动负荷 Dynamic C N	静负荷 Static Co N
	mm	公差T μ m	mm	公差T μ m	mm	公差T μ m	Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	z mm			动负荷 Dynamic C N	静负荷 Static Co N
LMH6UU	6	0 -9	12	0 ﹣11	19	±300	28	18	5	20	–	3.5	6	3.1	12	12	206	265	21
LMH8UU	8		15	0 ﹣11	24		32	21	5	24	–	3.5	6	3.1			274	392	33
LMH10UU	10		19	0 ﹣13	29		40	25	6	29	–	4.5	7.5	4.1			372	549	64
LMH12UU	12		21		30	0 ﹣200	42	27	6	32	–	4.5	7.5	4.1			510	784	68
LMH13UU	13		23		32		43	29	6	33	–	4.5	7.5	4.1			510	784	81
LMH16UU	16		28		37		48	34	6	31	22	4.5	7.5	4.1			774	1,180	112
LMH20UU	20	0 -10	32	0 ﹣16	42		54	38	8	36	24	5.5	9	5.1	15	15	882	1,370	167
LMH25UU	25		40		59	0 ﹣300	62	46	8	40	32	5.5	9	5.1			980	1,570	325
LMH30UU	30		45		64	0 ﹣300	74	51	10	49	35	6.6	11	6.1			1,570	2,740	388
