LMHP..LUU Flanged Linear Bushings, Flanged Linear Bushings

LMHP..LUU

SEND INQUIRY

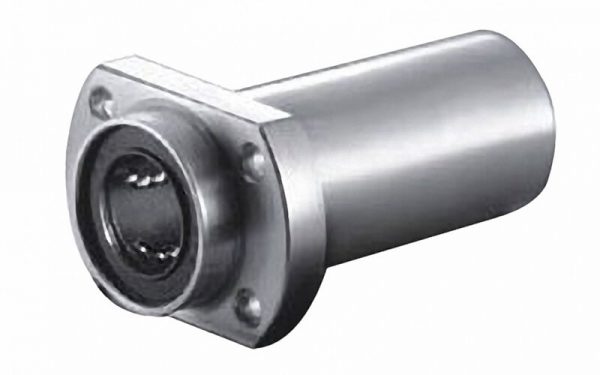

Flanged Linear Ball Bearing LMHM…LUU
This type is a metric dimension series generally used in Asia and other countries.

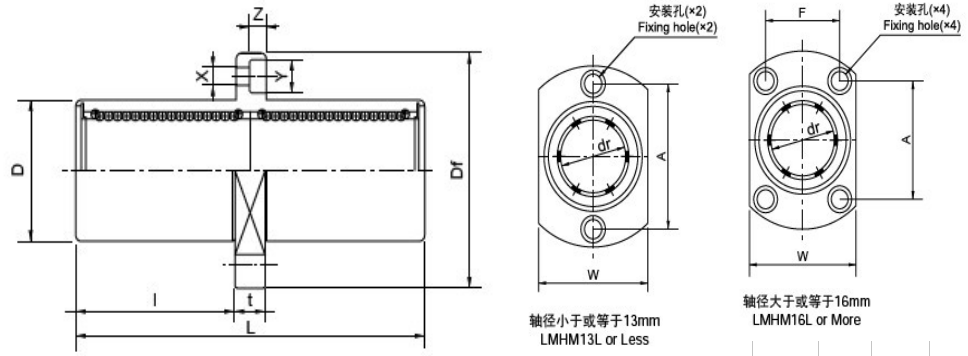

加长中间椭圆法兰 LMHM…LUU	主要尺寸和公差 Main dimensions and tolerance (T)															偏心Eccentricity μ m	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
	dr		D		L		法兰Flange											动负荷 Dynamic C N	静负荷 Static Co N
	mm	公差T μ m	mm	公差T μ m	mm	公差T μ m	l mm	Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			动负荷 Dynamic C N	静负荷 Static Co N
LMHM6LUU	6	0 ﹣10	12	0 ﹣13	35	±300	15	28	18	5	20	—	3.5	6	3.1	15	15	323	529	28
LMHM8LUU	8		15	0 ﹣13	45		20	32	21	5	24	—	3.5	6	3.1			431	784	47
LMHM10LUU	10		19	0 ﹣16	55		24.5	40	25	6	29	—	4.5	7.5	4.1			588	1,100	90
LMHM12LUU	12		21		57	0 ﹣300	25.5	42	27	6	32	—	4.5	7.5	4.1			813	1,570	102
LMHM13LUU	13		23		61		27.5	43	29	6	33	—	4.5	7.5	4.1			813	1,570	123
LMHM16LUU	16		28		70		32	48	34	6	31	22	4.5	7.5	4.1			1,230	2,350	182
LMHM20LUU	20	0 ﹣12	32	0 ﹣19	80		36	54	38	8	36	24	5.5	9	5.1	20	20	1,400	2,740	247
LMHM25LUU	25		40		112	0 ﹣400	52	62	46	8	40	32	5.5	9	5.1			1,560	3,140	525
LMHM30LUU	30		45		123	0 ﹣400	56.5	74	51	10	49	35	6.6	11	6.1			2,490	5,490	645
