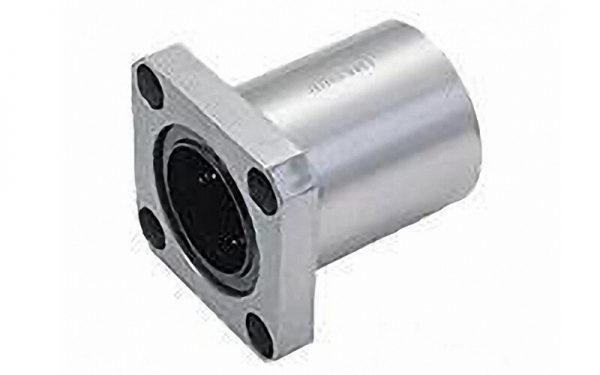

Flanged Linear Ball Bearing LMK…UU
This type is a metric dimension series generally used in Asia and other countries.

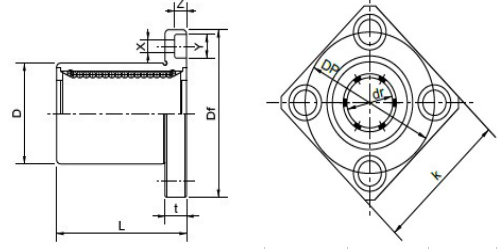

尼龙保持架 Resin retainer	主要尺寸和公差 Main dimensions and tolerance(T)													偏心 Eccentricity μ M	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
尼龙保持架 Resin retainer	dr		D		L		法兰Flange									额定负荷 Basic load rating
方法兰 LMK…UU	mm	公差T μ m	mm	公差T μm	mm	公差T μm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			动负荷 Dynamic Co N	静负荷 Static Co N
LMK6UU	6	0 ﹣9	12	0 ﹣11	19	±300	28	22	5	20	3.5	6	3.1	12	12	206	265	18
LMK8SUU	8		15		17		32	25	5	24	3.5	6	3.1			176	216	24
LMK8UU	8		15		24		32	25	5	54	3.5	6	3.1			274	392	29
LMK10UU	10		19	0 ﹣13	29	0 -200	40	30	6	29	4.5	7.5	4.1			372	549	52
LMK12UU	12		21		30		42	32	6	32	4.5	7.5	4.1			510	784	57
LMK13UU	13		23		32		43	34	6	33	4.5	7.5	4.1			510	784	72
LMK16UU	16		28		37		48	37	6	38	4.5	7.5	4.1			774	1180	104
LMK20UU	20	0 ﹣10	32	0 ﹣16	42		54	42	8	43	5.5	9	5.1	15	15	882	1370	145
LMK25UU	25		40		59	0 -300	62	50	8	51	5.5	9	5.1			980	1570	300
LMK30UU	30		45		64		74	58	10	60	6.6	11	6.1			1570	2740	375
LMK35UU	35	0 ﹣12	52	0 ﹣19	70		82	64	10	67	6.6	11	6.1	20	20	1670	3140	560
LMK40UU	40		60		80		96	75	13	78	9	14	8.1			2160	4020	880
LMK50UU	50		80		100		116	92	13	98	9	14	8.1			3820	7940	2,000
LMK60UU	60	0 ﹣15	90	0 ﹣22	110		134	106	18	112	11	17	11	25	25	4700	10000	2,560
LMK80UU	80	0 ﹣15	120	0 ﹣22	140	0 -400	164	136	18	142	11	17	11	25	25	7350	16000	5,300
LMK100UU	100	0/-20	150	0/-25	175	0 -400	200	170	20	175	14	20	13	30	30	14100	34800	9,900
