LMKP..UU Flanged Linear Bushings, Flanged Linear Bushings

LMKP..UU

SEND INQUIRY

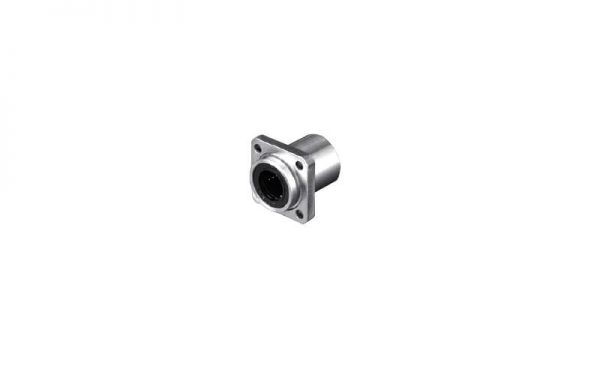

Flanged Linear Ball Bearing LMKP…UU
This type is a metric dimension series generally used in Asia and other countries.

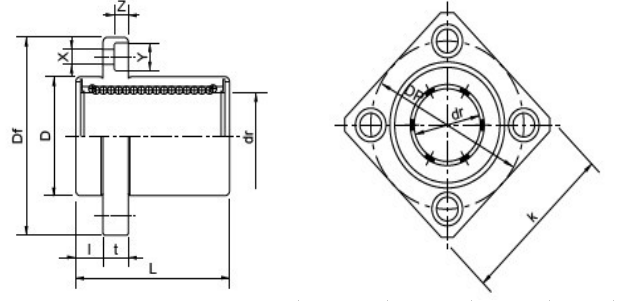

导向方法兰 LMKP…UU	主要尺寸和公差 Main dimensions and tolerance (T)														偏心Eccentricity μ m	垂直度Squareness μ m	额定负荷 Basic load rating		重量 Weight (gf)
		dr		D		L	法兰Flange										动负荷 Dynamic C N	静负荷 Static Co N
	mm	公差T μ m	mm	公差T μ m	mm	公差T μ m	l mm	Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			动负荷 Dynamic C N	静负荷 Static Co N
LMKP6UU	6	0 ﹣9	12	0 ﹣13	19	±300	5	28	22	5	20	3.5	6	3.1	12	12	206	265	18
LMKP8UU	8		15		24		5	32	25	5	24	3.5	6	3.1			274	392	29
LMKP10UU	10		19		29		6	40	30	6	29	4.5	7.5	4.1			372	549	52
LMKP12UU	12		21	0 ﹣16	30	0 ﹣200	6	42	32	6	32	4.5	7.5	4.1			510	784	57
LMKP13UU	13		23		32		6	43	34	6	33	4.5	7.5	4.1			510	784	72
LMKP16UU	16		28		37		6	48	37	6	38	4.5	7.5	4.1			774	1,180	104
LMKP20UU	20	0 ﹣10	32		42		8	54	42	8	43	5.5	9	5.1	15	15	882	1,370	145
LMKP25UU	25		40	0 ﹣19	59		8	62	50	8	51	5.5	9	5.1			980	1,570	300
LMKP30UU	30		45	0 ﹣19	64	0 ﹣300	10	74	58	10	60	6.6	11	6.1			1,570	2,740	375
LMKP35UU	35	0 ﹣12	52	0 ﹣22	70		10	82	64	10	67	6.6	11	6.1	20	20	1,670	3,140	560
LMKP40UU	40		60		80		13	96	75	13	78	9	14	8.1			2,160	4,020	880
LMKP50UU	50		80		100		13	116	92	13	98	9	14	8.1			3,820	7,940	2000
LMKP60UU	60	0/-15	90	0/-25	110		18	134	106	18	112	11	17	11.1	25	25	4,700	10,000	2560
