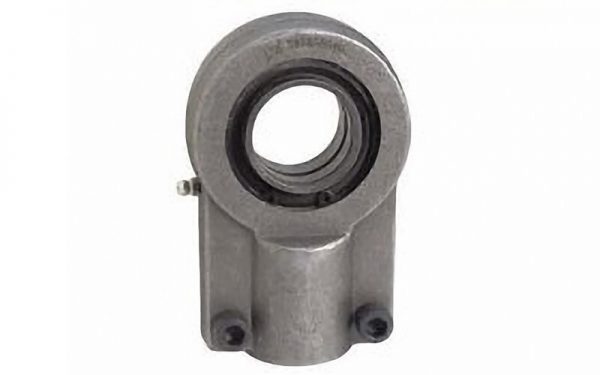

-Rod end housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE..LO and rod end housing.
-With locking slot and nut.
-Rod end housing with a lubricating hole or grease nipple.
-For left-hand thead ,please add suffix “L” is added to bearing number,e.g.GIHN-KL 12 LO.
-Relubrication not possible for the size marked “*”.

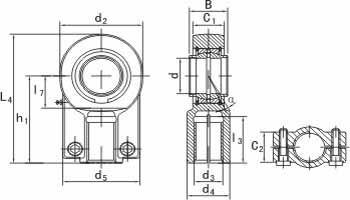

| Part NO | Dimensions mm | Load ratings kN | Weight | ||||||||||||
| d | d3 | d4 | L3 | B | C1 | d2 | L7 | h1 | L4 | d5 | C2 | dyn | stat | kg | |
| 6H | min | min | C | C0 | |||||||||||
| GIHN-K12LO* | 12 | M12x1.25 | 16.5 | 17 | 12 | 11 | 32 | 14 | 38 | 54 | 32 | 11 | 10.8 | 24.5 | 0.1 |
| GIHN-K16LO | 16 | M14x1.5 | 21 | 19 | 16 | 14 | 40 | 18 | 44 | 64 | 40 | 14 | 17.6 | 36.5 | 0.2 |
| GIHN-K20LO | 20 | M16x1.5 | 25 | 23 | 20 | 17 | 47 | 22 | 52 | 77 | 47 | 17 | 30 | 48 | 0.4 |
| GIHN-K25LO | 25 | M20x1.5 | 30 | 29 | 25 | 22 | 58 | 27 | 65 | 96 | 54 | 19 | 48 | 78 | 0.7 |
| GIHN-K32LO | 32 | M27x2.0 | 38 | 37 | 32 | 28 | 71 | 32 | 80 | 118.5 | 66 | 22 | 67 | 114 | 1.2 |
| GIHN-K40LO | 40 | M33x2.0 | 47 | 46 | 40 | 33 | 90 | 41 | 97 | 146 | 80 | 26 | 100 | 204 | 2.1 |
| GIHN-K50LO | 50 | M42x2.0 | 58 | 57 | 50 | 41 | 109 | 50 | 120 | 179.5 | 96 | 32 | 156 | 310 | 4.4 |
| GIHN-K63LO | 63 | M48x2.0 | 70 | 64 | 63 | 53 | 136 | 62 | 140 | 213 | 114 | 38 | 255 | 430 | 7.6 |
| GIHN-K70LO | 70 | M56x2.0 | 80 | 76 | 70 | 57 | 155 | 70 | 160 | 245 | 135 | 42 | 315 | 540 | 9.5 |
| GIHN-K80LO | 80 | M64x3.0 | 90 | 86 | 80 | 66 | 168 | 78 | 180 | 270 | 148 | 48 | 400 | 695 | 14.5 |
| GIHN-K90LO | 90 | M72x3.0 | 100 | 91 | 90 | 72 | 185 | 85 | 195 | 296 | 160 | 52 | 490 | 750 | 17.0 |
| GIHN-K100LO | 100 | M80x3.0 | 110 | 96 | 100 | 84 | 210 | 98 | 210 | 322 | 178 | 62 | 610 | 1060 | 28.0 |
| GIHN-K110LO | 110 | M90x3.0 | 125 | 106 | 110 | 88 | 235 | 105 | 235 | 364 | 190 | 62 | 655 | 1200 | 32.0 |
| GIHN-K125LO | 125 | M100x3.0 | 135 | 113 | 125 | 102 | 260 | 120 | 260 | 405 | 200 | 72 | 950 | 1430 | 43.0 |
