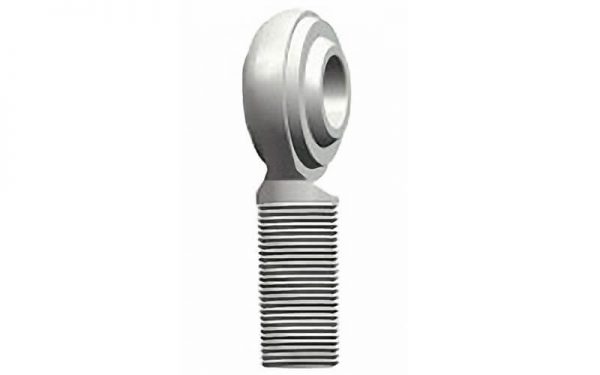

-Rod body with right or left-hand male thread.
-Outer race lined with bronze liner.
-Surface of rod body zinc plated.
-In inch dimension series.
-For left-hand thread,please add surffix “L”,e.g.SALZJ 15.
-Lubricating hole or grease nipple isn’t available for sizes marked “*”.
-When a grease nipple is required for other sizes,please use the part no. SAZJ..S.
-Load ratings apply only to rod ends without lubricating hole or grease nipple.
| Part No. | Dimensions mm | Load Ratings kN | Weight | |||||||||||
| d | d3 | B | C1 | L1 | d2 | h | L2 | d1 | R1s | a | dyn | stat | kg | |
| 3A | min | min | ≈ | C | C0 | |||||||||
| SAZJ4* | 5.00 | 10-32 | 8.00 | 6.00 | 19.00 | 16.00 | 32.00 | 40.00 | 8 | 0 | 10 | 4 | 4 | 0.014 |
| SAZJ6* | 6.35 | 1/4-28 | 9.53 | 6.35 | 25.40 | 19.05 | 39.67 | 49.20 | 8.4 | 0.3 | 13.5 | 5.4 | 6.6 | 0.018 |
| SAZJ7* | 8.00 | 5/16-24 | 11.00 | 8.00 | 32.00 | 22.00 | 48.00 | 59.00 | 11 | 0 | 11 | 9 | 12 | 0.032 |
| SAZJ9 | 9.525 | 3/8-24 | 12.70 | 9.12 | 31.75 | 25.40 | 49.23 | 61.93 | 13.1 | 0.6 | 11 | 11 | 16 | 0.05 |
| SAZJ11 | 11.00 | 7/16-20 | 14.00 | 10.00 | 35.00 | 29.00 | 54.00 | 68.00 | 15 | 1 | 11 | 14 | 21 | 0.068 |
| SAZJ12 | 12.70 | 1/2-20 | 15.88 | 11.50 | 38.10 | 33.32 | 61.93 | 78.59 | 17.7 | 0.6 | 10 | 18 | 28 | 0.11 |
| SAZJ15 | 16.00 | 5/8-18 | 19.00 | 12.00 | 41.00 | 38.00 | 67.00 | 86.00 | 21 | 1 | 13 | 23 | 29 | 0.16 |
| SAZJ19 | 19.05 | 3/4-16 | 22.23 | 15.06 | 44.45 | 44.45 | 73.03 | 95.25 | 24.8 | 0.6 | 12 | 34 | 44 | 0.26 |
