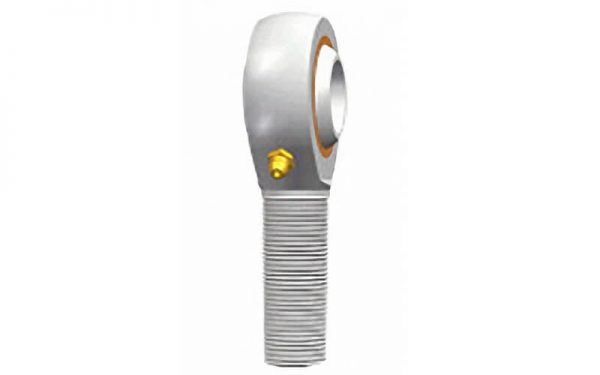

-Rod body with right or left-hand male thread.
-Outer race lined with bronze liner.
-Surface of rod body zinc plated.
-In inch dimension series.
-For left-hand thread,please add surffix “L”,e.g.SALZP15S.
| Part No. | Dimensions mm | Load Ratings kN | Weight | |||||||||||
| d | d3 | B | C1 | L1 | d2 | h | L2 | d1 | R1s | a | dyn | stat | kg | |
| 3A | C | C0 | ||||||||||||
| SAZP4S | 4.826 | 10-32 | 7.925 | 6.35 | 19.05 | 15.88 | 31.75 | 39.7 | 7.79 | 0.3 | 10 | 3.4 | 3.8 | 0.013 |
| SAZP6S | 6.35 | 1/4-28 | 9.525 | 7.14 | 25.4 | 19.05 | 39.67 | 49.2 | 8.4 | 0.3 | 13 | 4.5 | 6.6 | 0.022 |
| SAZP7S | 7.938 | 5/16-24 | 11.1 | 8.74 | 31.75 | 22.23 | 47.63 | 58.72 | 11.35 | 0.3 | 10 | 6.9 | 8.4 | 0.037 |
| SAZP9S | 9.525 | 3/8-24 | 12.7 | 10.31 | 31.75 | 25.4 | 49.23 | 61.93 | 14.2 | 0.6 | 9 | 9.4 | 10 | 0.055 |
| SAZP11S | 11.113 | 7/16-20 | 14.275 | 11.1 | 34.95 | 28.58 | 53.98 | 68.28 | 12.62 | 0.6 | 11 | 11 | 13 | 0.078 |
| SAZP12S | 12.7 | 1/2-20 | 15.875 | 12.7 | 38.1 | 33.32 | 61.93 | 78.59 | 15.55 | 0.6 | 9 | 15 | 19 | 0.12 |
| SAZP15S | 15.875 | 5/8-18 | 19.05 | 14.27 | 41.28 | 38.1 | 68.68 | 85.73 | 21.3 | 0.6 | 11 | 20 | 21 | 0.18 |
| SAZP19S | 19.05 | 3/4-16 | 22.225 | 17.45 | 44.45 | 44.45 | 73.03 | 95.25 | 22.67 | 0.6 | 10 | 29 | 29 | 0.29 |
| SAZP25S | 25.4 | 5/4-12 | 34.93 | 25.4 | 53.98 | 69.85 | 104.78 | 139.7 | 36.89 | 0.6 | 14 | 60 | 101 | 1.1 |
