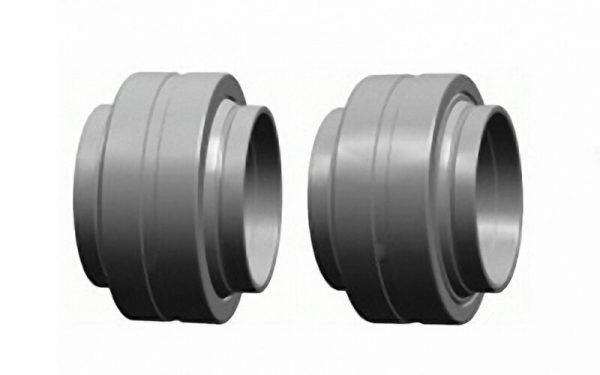

GEWZ..ES GEWZ..ES-2RS Inch Sizes Bearings, Inch Spherical Plain Bearings

GEWZ..ES GEWZ..ES-2RS

SEND INQUIRY

-GEWZ…ES:As series GEEW…ES,but with inch dimensions.
-GEWZ…ES-2RS:As series GEEW…ES-2RS,but with inch dimensions..

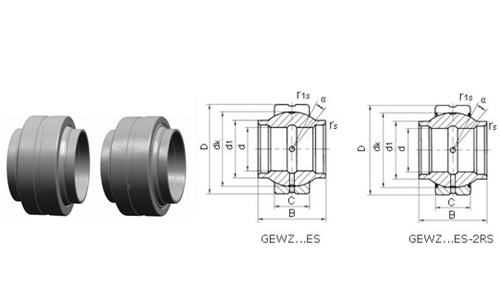

Bearing No.	Dimensions mm									Load ratings kN		Weight
	d	D	B	C	d1max	dk	rs	r1s	α°	Dyn	Stat	Kg
							min	min	≈	C	Co
GEWZ12ES	0.5	0.875	0.75	0.375	0.625	0.719	0.006	0.024	5	13	41	0.024
GEWZ15ES	0.625	1.0625	0.937	0.469	0.78	0.899	0.006	0.024	5	22	65	0.038
GEWZ19ES	0.75	1.25	1.125	0.562	0.92	1.08	0.012	0.024	5	31	95	0.064
GEWZ19ES-2RS	0.75	1.25	1.125	0.562	0.92	1.08	0.012	0.024	5	31	95	0.064
GEWZ22ES	0.875	1.4375	1.312	0.656	1.07	1.258	0.012	0.024	5	42	127	0.098
GEWZ22ES-2RS	0.875	1.4375	1.312	0.656	1.07	1.258	0.012	0.024	5	42	127	0.098
GEWZ25ES	1	1.625	1.5	0.75	1.22	1.437	0.012	0.024	5	56	166	0.142
GEWZ25ES-2RS	1	1.625	1.5	0.75	1.22	1.437	0.012	0.024	5	56	166	0.142
GEWZ31ES	1.25	210	1.875	0.937	1.525	1.795	0.024	0.024	5	86	260	0.271
GEWZ31ES-2RS	1.25	210	1.875	0.937	1.525	1.795	0.024	0.024	5	86	260	0.271
GEWZ34ES	1.375	2.1875	2.062	1.031	1.67	1.937	0.024	0.04	5	102	310	0.373
GEWZ34ES-2RS	1.375	2.1875	2.062	1.031	1.67	1.937	0.024	0.04	5	102	310	0.373
GEWZ38ES	1.5	2.4375	2.25	1.125	1.85	2.155	0.024	0.04	5	125	375	0.494
GEWZ38ES-2RS	1.5	2.4375	2.25	1.125	1.85	2.155	0.024	0.04	5	125	375	0.494
GEWZ44ES	1.75	2.8125	2.625	1.312	2.165	2.515	0.024	0.04	5	170	510	0.762
GEWZ44ES-2RS	1.75	2.8125	2.625	1.312	2.165	2.515	0.024	0.04	5	170	510	0.762
GEWZ50ES	2	3.1875	3	1.5	2.46	2.875	0.024	0.04	5	224	670	1.11
GEWZ50ES-2RS	2	3.1875	3	1.5	2.46	2.875	0.024	0.04	5	224	670	1.11
GEWZ57ES	2.25	3.5625	3.375	1.687	2.76	3.235	0.024	0.04	5	280	850	1.57
GEWZ57ES-2RS	2.25	3.5625	3.375	1.687	2.76	3.235	0.024	0.04	5	280	850	1.57
GEWZ63ES	2.5	3.9375	3.75	1.875	3.06	3.59	0.04	0.04	5	355	1060	2.15
GEWZ63ES-2RS	2.5	3.9375	3.75	1.875	3.06	3.59	0.04	0.04	5	355	1060	2.15
GEWZ69ES	2.75	4.375	4.125	2.062	3.38	3.95	0.04	0.04	5	415	1250	2.9
GEWZ69ES-2RS	2.75	4.375	4.125	2.062	3.38	3.95	0.04	0.04	5	415	1250	2.9
GEWZ76ES	3	4.75	4.5	2.25	3.675	4.312	0.04	0.04	5	500	1500	3.59
GEWZ76ES-2RS	3	4.75	4.5	2.25	3.675	4.312	0.04	0.04	5	500	1500	3.59
GEWZ82ES	3.25	5.125	4.875	2.437	3.985	4.675	0.04	0.04	5	585	1760	4.69
GEWZ82ES-2RS	3.25	5.125	4.875	2.437	3.985	4.675	0.04	0.04	5	585	1760	4.69
GEWZ88ES	3.5	5.5	5.25	2.625	4.3	5.04	0.04	0.04	5	680	2040	5.86
GEWZ88ES-2RS	3.5	5.5	5.25	2.625	4.3	5.04	0.04	0.04	5	680	2040	5.86
