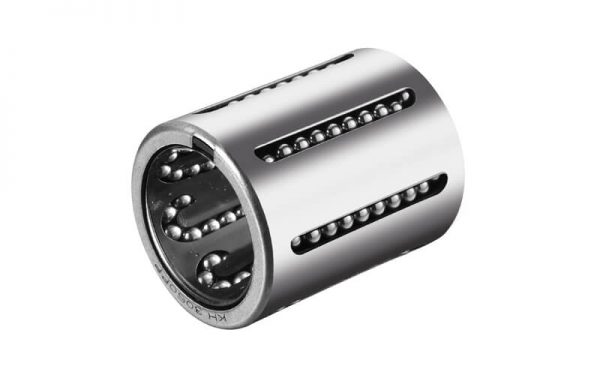

Linear Bearing KH
This type is a metric dimension series generally used in Europe.
| 型号 Part No. | 主要尺寸 Main dimensions(mm) | 额定负荷 Basic load rating | 重量 Weight (gf) | |||

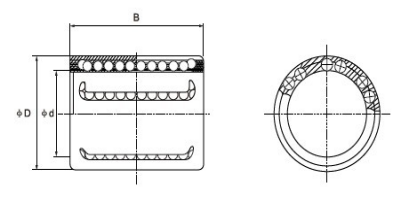

| Фd | ФD | B | 动负荷 Dynamic Co N | 静负荷 Static Co N | ||
| KH0622 | 6 | 12 | 22 | 400 | 239 | 7 |
| KH0824 | 8 | 15 | 24 | 435 | 280 | 12 |
| KH1026 | 10 | 17 | 26 | 500 | 370 | 14.5 |
| KH1228 | 12 | 19 | 28 | 620 | 510 | 18.5 |
| KH1428 | 14 | 21 | 28 | 620 | 520 | 20.5 |
| KH1630 | 16 | 24 | 30 | 800 | 620 | 27.5 |
| KH2030 | 20 | 28 | 30 | 950 | 790 | 32.5 |
| KH2540 | 25 | 35 | 40 | 1990 | 1,670 | 66 |
| KH3050 | 30 | 40 | 50 | 2800 | 2,700 | 95 |
| KH4060 | 40 | 52 | 60 | 4400 | 4,450 | 182 |
| KH5070 | 50 | 62 | 70 | 5500 | 6,300 | 252 |
