LM..LUU Linear Bushings, Linear Bushing

LM..LUU

SEND INQUIRY

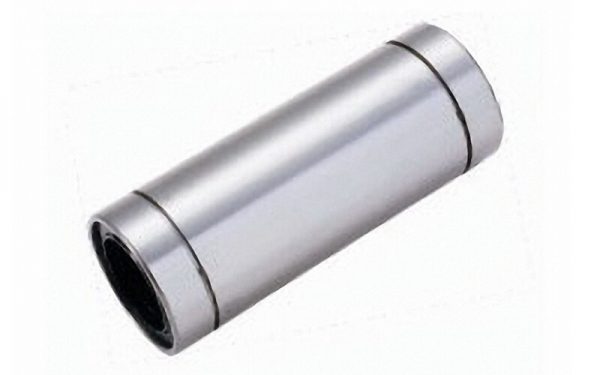

Linear Bearing Long Type LM…LUU
This type is a metric dimension series generally used in Asia and other countries.

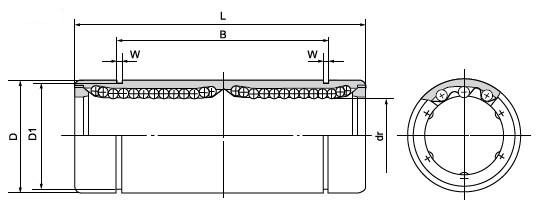

尼龙保持架 Resin retainer		主要尺寸和公差 Main dimensions and tolerance(T)										偏心 Eccentricity μ M	额定负荷 Basic load rating		重量 Weight (gf)
尼龙保持架 Resin retainer		dr		D		L		B		W mm	D1 mm		额定负荷 Basic load rating
标准型 LM…LUU	钢球列数 Ball circuit	mm	公差T μ m	mm	公差T μm	mm	公差T μm	mm	公差T μm	W mm	D1 mm		动负荷 Dynamic Co N	静负荷 Static Co N
LM6LUU	4	6	0 -10	12	0 -13	35	0 -300	27	0 -300	1.1	11.5	15	323	530	16
LM8LUU	4	8		15	0 -13	45		35		1.1	14.3		431	784	31
LM10LUU	4	10		19	0 -16	55		44		1.3	18		588	1,100	62
LM12LUU	4	12		21		57		46		1.3	20		813	1,570	80
LM13LUU	4	13		23		61		46		1.3	22		813	1,570	90
LM16LUU	5	16		28		70		53		1.6	27		1,230	2,350	145
LM20LUU	5	20	0 -12	32	0 -19	80		61		1.6	30.5	20	1,400	2,740	180
LM25LUU	6	25		40		112	0 -400	82	0 -400	1.85	38		1,560	3,140	440
LM30LUU	6	30		45		123		89		1.85	43		2,490	5,490	480
LM35LUU	6	35	0 -15	52	0 -22	135		99		2.1	49	25	2,650	6,270	795
LM40LUU	6	40		60		151		121		2.1	57		3,430	8,040	1,170
LM50LUU	6	50		80		192		148		2.6	76.5		6,080	15,900	3,100
LM60LUU	6	60	0/-20	90	0 /-25	209		170		3.15	86.5	30	7,550	20,000	3,500
