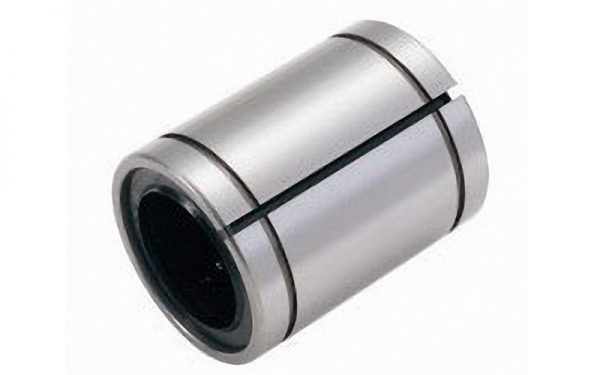

Linear Bearing LM…UU-AJ
This type is a metric dimension series generally used in Asia and other countries.

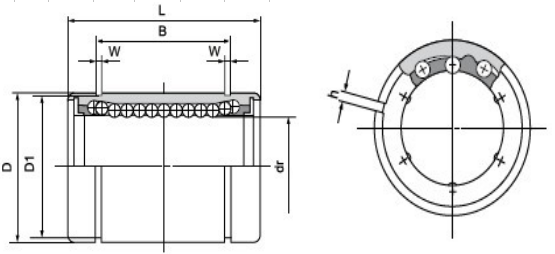

尼龙保持架 Resin retainer		dr			主要尺寸和公差 Main dimensions and tolerance(T)											偏心 Eccentricity μ M		最大径向间隙 Radial clearance (max) μ m	额定负荷 Basic load rating		重量 Weight (gf)
尼龙保持架 Resin retainer		mm	公差T μ m		D		L		B		W mm	D1 mm	h mm	h1 mm	θ	偏心 Eccentricity μ M			额定负荷 Basic load rating
间隙调整型 LM…UU-AJ	钢球列数 Ball circuit	mm	精密 Precision	普通 High	mm	公差T μm	mm	公差T μm	mm	公差T μm	W mm	D1 mm	h mm	h1 mm	θ	精密Precision	普通 High		动负荷 Dynamic Co N	静负荷 Static Co N
LM6UU-AJ	4	6	0 -6	0 -9	12	0 -11	19	0 -200	13.5	0 -200	1.1	11.5	—	—		8	12	-3	206	265	7.5
LM8SUU-AJ	4	8			15		17		11.5		1.1	14.3	1	—					176	216	10
LM8UU-AJ	4	8			15		24		17.5		1.1	14.3	1	—					274	392	14.7
LM10UU-AJ	4	10			19	0 -13	29		22		1.3	18	1	6.8	80°			-4	372	549	29
LM12UU-AJ	4	12			21		30		23		1.3	20	1.5	8	80°				510	784	31
LM13UU-AJ	4	13			23		32		23		1.3	22	1.5	9	80°				510	784	42
LM16UU-AJ	5	16			28		37		26.5		1.6	27	1.5	11	80°			-6	774	1,180	68
LM20UU-AJ	5	20	0 -7	0 -10	32	0 -16	42		30.5		1.6	30.5	1.5	11	60°	10	15		882	1,370	85
LM25UU-AJ	6	25			40		59	0 -300	41	0 -300	1.85	38	2	12	50°				980	1,570	216
LM30UU-AJ	6	30			45		64		44.5		1.85	43	2.5	15	50°			-8	1,570	2,740	245
LM35UU-AJ	6	35	0 -8	0 -12	52	0 -19	70		49.5		2.1	49	2.5	17	50°	12	20	-8	1,670	3,140	384
LM40UU-AJ	6	40			60		80		60.5		2.1	57	3	20	50°			-10	2,160	4,020	579
LM50UU-AJ	6	50			80		100		74		2.6	76.5	3	25	50°			-13	3,820	7,940	1560
LM60UU-AJ	6	60	0 -9	0 -15	90	0 -22	110		85		3.15	86.5	3	30	50°	17	25	-13	4,700	10,000	1820
LM80UU-AJ	6	80	0 -9	0 -15	120	0 -22	140	0 -400	106	0 -400	4.15	116	3	40	50°	17	25	-20	7,350	16,000	4300
LM100UU-AJ	6	100	0 -10	0 -20	150	0 -25	175		126		4.15	145	3	50	50°	20	30	-20	14,100	34,800	8540
LM120UU-AJ	8	120	0 -10	0 -20	180	0 -25	200		159		4.15	175	3	85	80°	20	30	-25	16,400	40,000	14900
LM150UU-AJ	8	150	0/-13	0/-25	210	0/-29	240		171		5.15	204	3	105	80°	25	40	-25	21,100	54,300	20150
