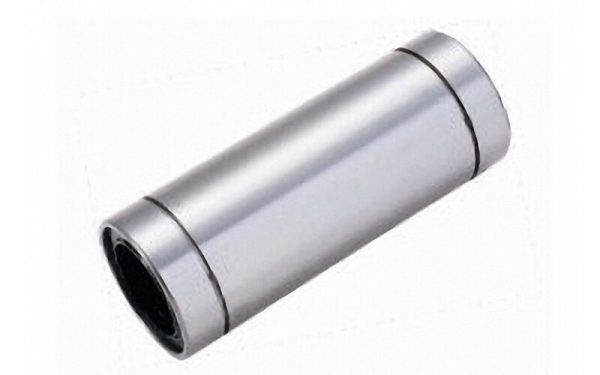

Linear Bearing Long Type LMB…LUU
This type is a inch dimension series mainly used in the America.

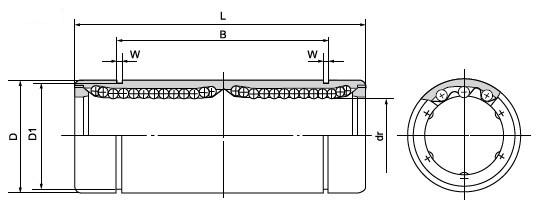

加长型 LMB…LUU	钢球列数 Ball circuit	dr		主要尺寸和公差 Main dimensions and tolerance(T)								偏心 Eccentricity inch/μ m	额定负荷 Basic load rating		重量 Weight (gf)
		inch mm	公差T inch/μ m	D		L		B		W inch mm	D1 inch mm
				inch mm	公差T inch/μm	inch mm	公差T inch/μm	inch mm	公差T inch/μm				动负荷 Dynamic Co N	静负荷 Static Co N
LMB4L	3*	0.25 6.35	0 ﹣.00040 0 ﹣10	.5000 12.700	0 ﹣.00050 0 ﹣13	1.3750 34.925	0 ﹣.012	1.0220 25.959	0 ﹣.012	.0390 0.992	.4687 11.906	.0006 15	323	530	17.5



LMB6LUU	4	.3750 9.525		.6250 15.875	0 ﹣.00065 0 ﹣16	1.5938 40.481		1.2716 32.298		.0390 0.992	.5880 14.935		353	630	28

LMB8LUU	4	.5000 12.700		.8750 22.225		2.3750 60.325	0 -300	1.9250 48.895	0 -300	.0459 1.168	.8209 20.853		813	1570	80

LMB10LUU	4	.6250 15.875		1.1250 28.575		2.8125 71.438		2.2079 56.080		.0559 1.422	1.0590 26.899		1,230	2,350	160

LMB12LUU	5	.7500 19.050	0 -.00050 0 -12	1.2500 31.750	0 -.00075 0 ﹣19	3.0937 78.581		2.3314 59.218		.0559 1.422	1.1760 29.870	.0008 20	1,370	2,740	195


LMB16LUU	6	1.0000 25.400		1.5625 39.688		4.2831 108.744	0 ﹣.016	3.5049 89.139	0 ﹣.016	.0679 1.727	1.4687 37.306		1,570	3,140	410

LMB20LUU	6	1.2500 31.750	0 ﹣.00060 0 ﹣15	2.0000 50.800	0 ﹣.00090 0 ﹣22	5.0000 127.000		4.0094 101.839		.0679 1.727	1.8859 47.904	.0010 25	2,500	5,490	820


LMB24LUU	6	1.5000 38.100		2.3750 60.325		5.6875 144.463	0 -400	4.8236 122.519	0 -400	.0859 2.184	2.2389 56.870		3,430	8,040	1250

LMB32LUU	6	2.0000 50.800		3.0000 76.200	0 ﹣.00100 0 ﹣25	7.7500 196.850		6.3834 162.138		.1029 2.616	2.8379 72.085	.0012 30	6,080	15,900	1350
