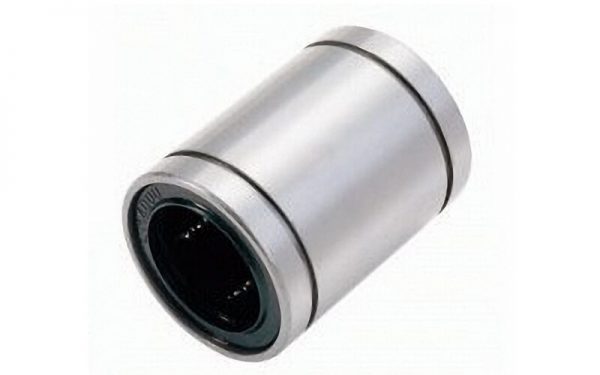

Linear Bearing LMB…UU
This type is a inch dimension series mainly used in the America.

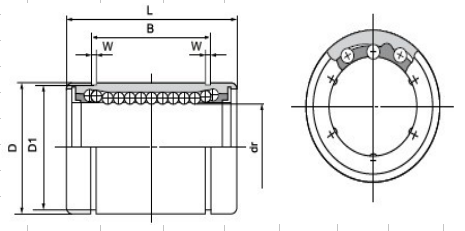

尼龙保持架 Resin retainer		dr			主要尺寸和公差 Main dimensions and tolerance(T)											偏心 Eccentricity inch/μ m		最大径向间隙 Radial clearance (max) inch/μ m	额定负荷 Basic load rating		重量 Weight (gf)
		inch mm	公差T inch/μ m		D		L		B		W inch mm	D1 inch mm	h inch mm	h1 inch mm	θ
标准型 LMB…UU	钢球列数 Ball circuit		精密 Precision	普通 High	inch mm	公差T inch/μm	inch mm	公差T inch/μm	inch mm	公差T inch/μm						精密Precision	普通 High		动负荷 Dynamic Co N	静负荷 Static Co N
LMB4	4	.2500 6.350	0 ﹣.00025 0 ﹣6	0 ﹣.00040 0 ﹣9	.5000 12.700	0 ﹣.00045 0 ﹣11	.7500 19.050	0 -0.008	.5110 12.98	0 -0.008	.0390 0.992	.4687 11.906	0.04 1	—	—	0.0003 8	0.0005 12	﹣.0001 ﹣3	206	265	8



LMB6UU	4	.3750 9.525			.6250 15.875	0 ﹣.00050 0 ﹣13	.8750 22.225		.6358 16.15		.0390 0.992	.5880 14.935	0.04 1	—	—				225	314	14

LMB8UU	4	.5000 12.700			.8750 22.225		1.2500 31.750	0 -200	.9625 24.46	0 -200	.0459 1.168	.8209 20.853	0.06 1.5	0.34 7.9375	80°			﹣.0001 ﹣4	510	784	37

LMB10UU	4	.6250 15.875			1.1250 28.575		1.5000 38.100		1.1039 28.04		.0559 1.422	1.0590 26.899	0.06 1.5	0.375 9.525	80°				774	1,180	76

LMB12UU	5	.7500 19.050	0 -0.0003 0 ﹣7	0 ﹣.00040 0 ﹣10	1.2500 31.750	0 ﹣.00065 0 ﹣16	1.6250 41.275		1.1657 29.61		.0559 1.422	1.1760 29.870	0.06 1.5	0.4375 11.1125	60°	0.0004 10	0.0006 15	﹣.0002 ﹣6	862	1,370	95

LMB16UU	6	1.0000 25.400			1.5625 39.688		2.2500 57.150	0 -0.012	1.7547 44.57	0 -0.012	.0679 1.727	1.4687 37.306	0.06 1.5	0.5625 14.2875	50°				980	1,570	200

LMB20UU	6	1.2500 31.750	0 -0.00035 0 ﹣8	0 ﹣.00050 0 ﹣12	2.0000 50.800	0 ﹣.00075 0 ﹣19	2.6250 66.675		2.0047 50.92		.0679 1.727	1.8859 47.904	0.1 2.5	0.625 15.875	50°	0.0005 12	0.0008 20	﹣.0003 ﹣8	1,570	2,740	440

LMB24UU	6	1.5000 38.100			2.3750 60.325		3.0000 76.200	0 -300	2.4118 61.26	0 -300	.0859 2.184	2.2389 56.870	0.12 3	0.75 19.05	50°				2,180	4,020	670

LMB32UU	6	2.0000 50.800			3.0000 76.200	0 ﹣.00090 0 ﹣22	4.0000 101.600		3.1917 81.07		.1029 2.616	2.8379 72.085	0.12 3	1 25.4	50°	0.0007 17	0.001 25	﹣.0005 ﹣13	3,820
