LME..UU Linear Bushings, Linear Bushing

LME..UU

SEND INQUIRY

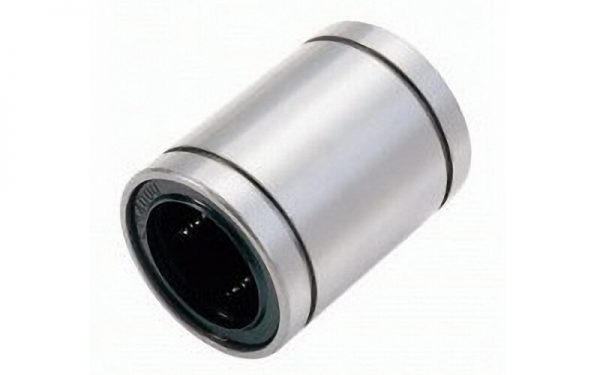

Linear Bearing LME…UU
This type is a metric dimension series generally used in Europe.

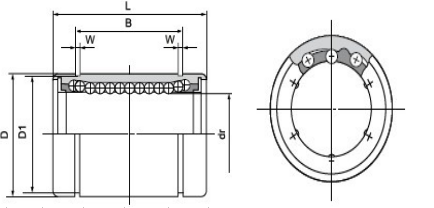

尼龙保持架 Resin retainer		dr			主要尺寸和公差 Main dimensions and tolerance(T)											偏心 Eccentricity μ M	最大径向间隙 Radial clearance (max) μ m	额定负荷 Basic load rating		重量 Weight (gf)
尼龙保持架 Resin retainer		mm	公差T μ m		D		L		B		W mm	D1 mm	h mm	h1 mm	θ			额定负荷 Basic load rating
标准型 LME…UU	钢球列数 Ball circuit	mm	精密 Precision	普通 High	mm	公差T μm	mm	公差T μm	mm	公差T μm	W mm	D1 mm	h mm	h1 mm	θ			动负荷 Dynamic Co N	静负荷 Static Co N
LME3	4	3	—	8 0	7	0 -8	10	0 -120	—	—	—	—	—	—	—	10	-3	69	105	1.35
LME4	4	4			8		12	0 -120	—	—	—	—	—	—	—	10		88	127	1.9
LME5UU	4	5			12		22	0 -200	14.5	0 -200	1.1	11.5	1	—	—	12		206	265	11
LME8UU	4	8			16		25		16.5		1.1	15.2	1	—	—			265	402	20
LME10UU	4	10			19	0 -9	29		22		1.3	18	1	6.8	80°		-4	372	549	29.5
LME12UU	4	12			22		32		22.9		1.3	21	1.5	7.5	78°			510	784	41
LME16UU	5	16	—	9 -1	26		36		24.9		1.3	24.9	1.5	10	78°			578	892	57
LME20UU	5	20	—	9 -1	32	0 -11	45		31.5		1.6	30.3	2	10	60°	15	-6	862	1370	91
LME25UU	6	25	—	11 -1	40		58	0 -300	44.1	0 -300	1.85	37.5	2	12.5	60°		-6	980	1570	215
LME30UU	6	30	—	11 -1	47		68		52.1		1.85	44.5	2	12.5	50°		-8	1570	2,740	325
LME40UU	6	40	—	13 -2	62	0 -13	80		60.6		2.15	59	3	16.8	50°	17	-8	2160	4,020	705
LME50UU	6	50			75	0 -13	100		77.6		2.65	72	3	21	50°	17	-13	3820	7,940	1,130
LME60UU	6	60			90	0 -15	125	0 -400	101.7	0 -400	3.15	86.5	3	27.2	54°	20		4,700	9,800	2,000
LME60UU	6	60			90	0 -15	125	0 -400	101.7	0 -400	3.15	86.5	3	27.2	54°	20		4,700	9,800	2,000
