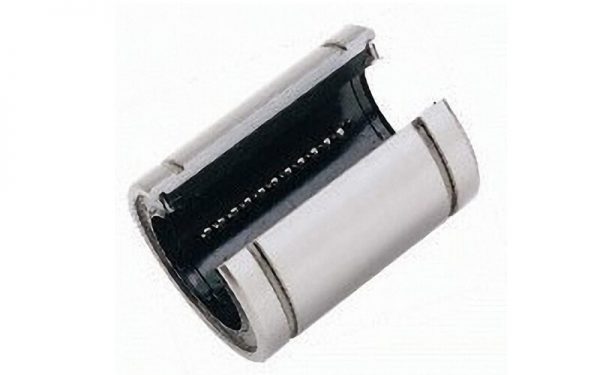

Linear Bearing LME…UU -OP
This type is a metric dimension series generally used in Europe.

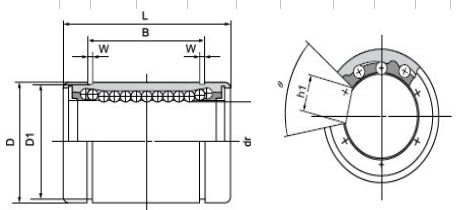

| 尼龙保持架 Resin retainer | dr | 主要尺寸和公差 Main dimensions and tolerance(T) | 偏心 Eccentricity μ M | 最大径向 间隙 Radial clearance (max) μ m | 额定负荷 Basic load rating | 重量 Weight (gf) | ||||||||||||||
| mm | 公差T μ m | D | L | B | W mm | D1 mm | h mm | h1 mm | θ | |||||||||||
| 开口型 LME…UU-OP | 钢球列数 Ball circuit | 精密 Precision | 普通 High | mm | 公差T μm | mm | 公差T μm | mm | 公差T μm | 动负荷 Dynamic Co N | 静负荷 Static Co N | |||||||||
| LME10UU-OP | 3 | 10 | — | 8 0 | 19 | 0 -9 | 29 | 0 -200 | 22 | 0 -200 | 1.3 | 18 | 1 | 6.8 | 80° | 12 | -4 | 372 | 549 | 23 |
| LME12UU-OP | 3 | 12 | 22 | 32 | 22.9 | 1.3 | 21 | 1.5 | 7.5 | 78° | 510 | 784 | 32 | |||||||
| LME16UU-OP | 4 | 16 | — | 9 -1 | 26 | 36 | 24.9 | 1.3 | 24.9 | 1.5 | 10 | 78° | 578 | 892 | 44 | |||||
| LME20UU-OP | 4 | 20 | 32 | 0 -11 | 45 | 31.5 | 1.6 | 30.3 | 2 | 10 | 60° | 15 | -6 | 862 | 1370 | 75 | ||||
| LME25UU-OP | 5 | 25 | — | 11 -1 | 40 | 58 | 0 -300 | 44.1 | 0 -300 | 1.85 | 37.5 | 2 | 12.5 | 60° | 980 | 1570 | 181 | |||
| LME30UU-OP | 5 | 30 | 47 | 68 | 52.1 | 1.85 | 44.5 | 2 | 12.5 | 50° | -8 | 1570 | 2,740 | 272 | ||||||
| LME40UU-OP | 5 | 40 | — | 13 -2 | 62 | 0 -13 | 80 | 60.6 | 2.15 | 59 | 3 | 16.8 | 50° | 17 | 2160 | 4,020 | 600 | |||
| LME50UU-OP | 5 | 50 | 75 | 100 | 77.6 | 2.65 | 72 | 3 | 21 | 50° | -13 | 3820 | 7,940 | 970 | ||||||
| LME60UU-OP | 5 | 60 | 90 | 0 -15 | 125 | 0 -400 | 101.7 | 0 -400 | 3.15 | 86.5 | 3 | 27.2 | 54° | 20 | 4,700 | 9,800 | 1580 | |||
