-Outer ring lined with PTFE composite material.
-Spherical surface of inner ring chrome plated.
-Outer ring properly phosphate treated.

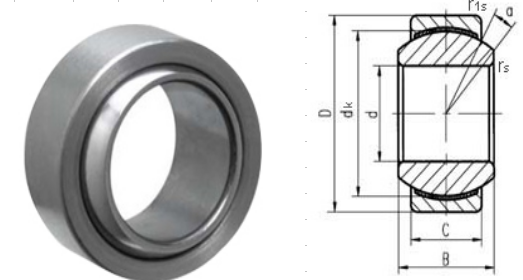

| Bearing No. | Dimensions mm | Load Ratings kN | Weight | ||||||||
| d | D | B | C | dk | R1s | R2s | α | dyn | stat | kg | |
| min | min | ≈ | C | C0 | |||||||
| GE4UK | 4 | 12 | 5 | 3 | 8 | 0.3 | 0.3 | 16 | 2.1 | 5.4 | 0.003 |
| GE5UK | 5 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9.1 | 0.005 |
| GE6UK | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9.1 | 0.004 |
| GE8UK | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.8 | 14 | 0.008 |
| GE10UK | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.6 | 21 | 0.011 |
| GE12UK | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 10 | 11 | 28 | 0.015 |
| GE15UK | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 18 | 45 | 0.027 |
| GE17UK | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 22 | 56 | 0.041 |
| GE20UK | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 31 | 78 | 0.066 |
| GE25UK | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 51 | 127 | 0.119 |
| GE30UK | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 65 | 166 | 0.163 |
