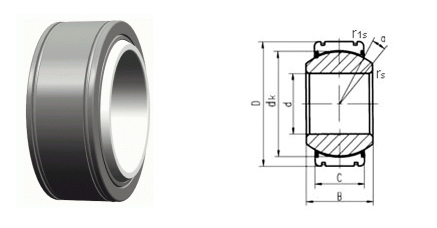

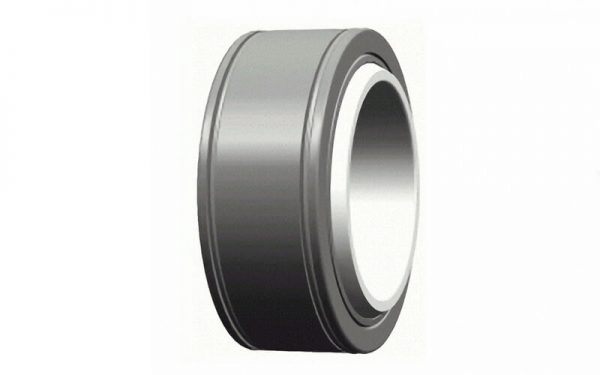

-As series GE…XT-2RS,but for bearing arrangement where a larger angle of tilt is needed,suitable for larger loads mechanism.
| Bearing No. | Dimensions mm | Load Ratings kN | Weight kg | ||||||||
| d | D | B | C | dk | rs | r1s | α | Dyn | Stat | ||
| min | min | ≈ | C | Co | |||||||
| GEG120XT-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1500 | 3000 | 14.01 |
| GEG140XT-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1920 | 3800 | 19.01 |
| GEG160XT-2RS | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 2160 | 4300 | 20.02 |
| GEG180XT-2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 3000 | 6000 | 32.21 |
| GEG200XT-2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 3300 | 6550 | 45.28 |
| GEG220XT-2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 3600 | 7200 | 51.12 |
| GEG240XT-2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 4290 | 8650 | 65.12 |
| GEG260XT-2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 5000 | 10000 | 82.44 |
| GEG280XT-2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 5400 | 10800 | 97.21 |
