Material:Low carbon steel
Zinc plate,yellow / clear passivated.

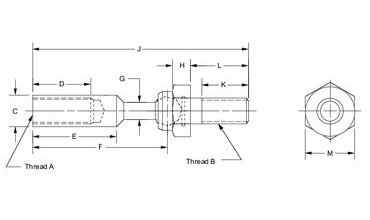

| Part No. | Male Thread | Female Thread | C | D | E | F | G | H | J | K | L | M |
| DS101 | 1/4-28 | 1/4-28 | 0.31 | 0.56 | 0.81 | 1.31 | 0.17 | 0.17 | 2.09 | 0.5 | 0.56 | 0.438 |
| DS101S | 1/4-20 | 1/4-20 | 0.31 | 0.56 | 0.81 | 1.31 | 0.17 | 0.17 | 2.09 | 0.5 | 0.56 | 0.438 |
| DS102 | 5/16-24 | 5/16-24 | 0.44 | 0.73 | 0.98 | 1.38 | 0.21 | 0.17 | 2.4 | 0.69 | 0.75 | 0.438 |
