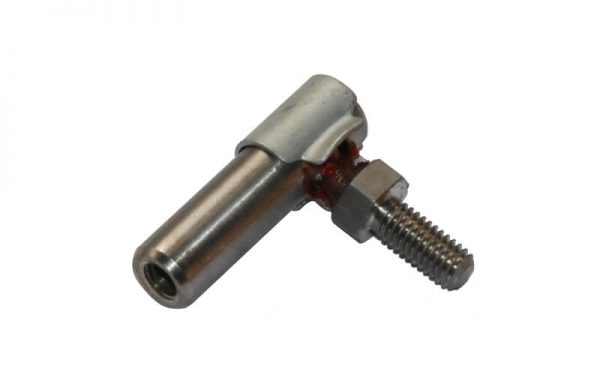

Ball Stud, Low carbon steel,heat treated.
Body,Low carbon steel,heat treated.
Clip,hardened spring steel.
Zinc plated, yellow dichromate treated
Alternative: stainless steel.
Unless otherwise specified,all dimensions are in inches.
Special request upon drawing or samples.

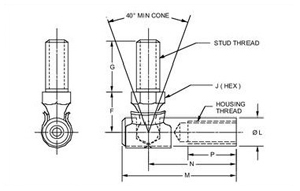

| Part No. | Housing Thread | Stud Thread | F | G | J | L | M | N | P |
| PI3-3 | 10-32 | 10-32 | 0.438 | 0.438 | 0.313 | 0.313 | 1.156 | 0.875 | 0.484 |
| PI3-4 | 10-32 | 1/4-28 | 0.438 | 0.563 | 0.313 | 0.313 | 1.156 | 0.875 | 0.484 |
| PI4-3 | 1/4-28 | 10-32 | 0.438 | 0.438 | 0.313 | 0.313 | 1.250 | 0.969 | 0.531 |
| PI4-4 | 1/4-28 | 1/4-28 | 0.438 | 0.563 | 0.313 | 0.313 | 1.250 | 0.969 | 0.531 |
| PI4L-4L | 1/4-28 | 1/4-28 | 0.562 | 0.500 | 0.313 | 0.340 | 1.750 | 1.500 | 1.120 |
