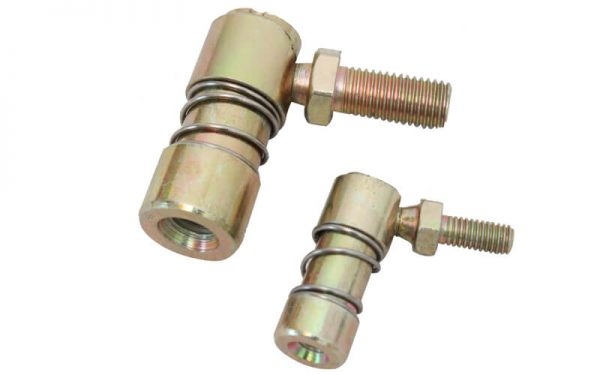

QI Quick Disconnet Ball Joints1

SEND INQUIRY
QI Quick Disconnet Ball Joints1
  • Body,Low carbon steel.

    Ball stud,low carbon steel,heat treated,zinc plated,

    yellow dichromate treated.

    Sleeve,low carbon steel,zinc plated,yellow dichromate treated.

    Spring,stainless steel.

    Alternative: stainless steel.

    Unless otherwise specified,all dimensions are in inches.

    Special request upon drawing or samples.

  •

  • Part No.Housing ThreadStud ThreadAFGJLMNP
    QI18710-3210-320.1250.4380.4380.3120.4381.0940.9060.438
    QI2501/4-281/4-280.1250.4690.5620.3750.5621.2500.9690.531
    QI3125/16-245/16-240.1560.5310.6870.4370.6251.4531.1250.594
    QI3753/8-243/8-240.1870.6870.8750.5000.7501.7501.3750.812
    QI5001/2-201/2-200.2500.8751.1250.6251.0002.5302.0301.000
