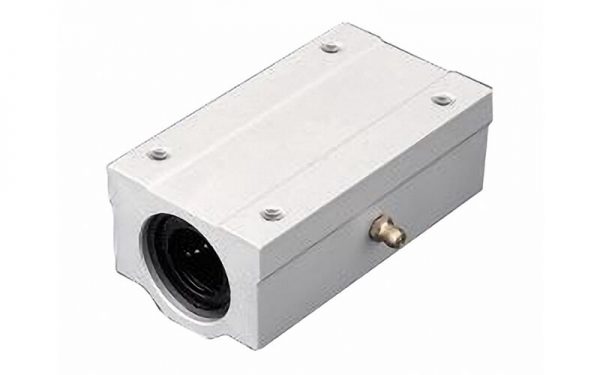

Linear Bearing Slide Unit SCE…LUU
This type is a metric dimension series generally used in Europe.

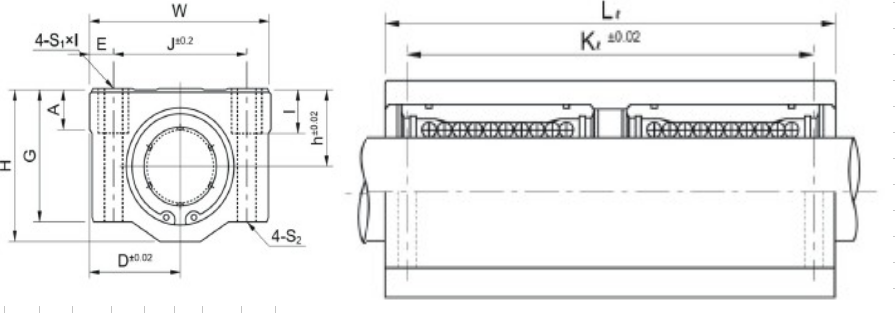

| 加长型 Long Type | 主要尺寸 Main Dimensions（mm) | 额定负荷 Basic load rating | 重量 Weight (gf) | ||||||||||||||
| 型号 Part No. | 内装轴承 Linear Bearing | 轴径 Shaft Diameter | h | D | W | H | G | A | J | E | S1×I | S2 | Kl | Ll | 动负荷 Dynamic C N | 静负荷 Static Co N | |
| SCE8LUU | 2×LME8UU | Φ8 | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 | M4×8 | Ф3.4 | 42 | 58 | 410 | 800 | 98 |
| SCE12LUU | 2×LME12UU | Φ12 | 15 | 22 | 44 | 30 | 24 | 8 | 33 | 5.5 | M5×10 | Ф4.3 | 64 | 77 | 650 | 1,180 | 232 |
| SCE16LUU | 2×LME16UU | Φ16 | 19 | 25 | 50 | 39 | 33 | 9 | 36 | 7 | M5×12 | Ф4.3 | 79 | 89 | 1230 | 2,340 | 360 |
| SCE20LUU | 2×LME20UU | Φ20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | Ф5.2 | 90 | 106 | 1370 | 2,740 | 490 |
| SCE25LUU | 2×LME25UU | Φ25 | 26 | 38 | 76 | 52 | 41 | 12 | 54 | 11 | M8×18 | Ф7 | 119 | 136 | 1560 | 3,120 | 1100 |
| SCE30LUU | 2×LME30UU | Φ30 | 30 | 39 | 78 | 60 | 49 | 15 | 58 | 10 | M8×18 | Ф7 | 132 | 154 | 2490 | 5,480 | 1525 |
| SCE40LUU | 2×LME40UU | Φ40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | Ф8.7 | 150 | 180 | 3440 | 8,020 | 3400 |
| SCE50LUU | 2×LME50UU | Φ50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | Ф8.7 | 200 | 230 | 6110 | 15,860 | 5920 |
