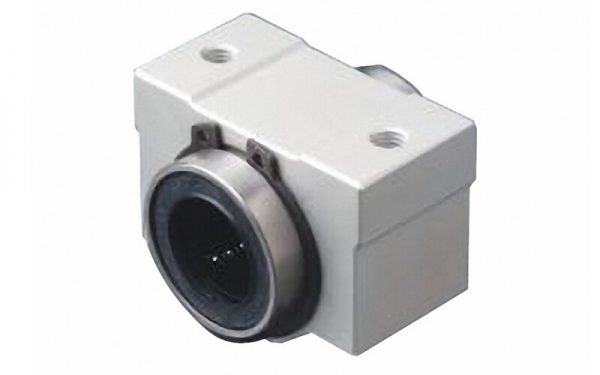

  • Linear Bearing Slide Unit SCE…SUU

    This type is a metric dimension series generally used in Europe.

  •

  • 短型
    Short Type

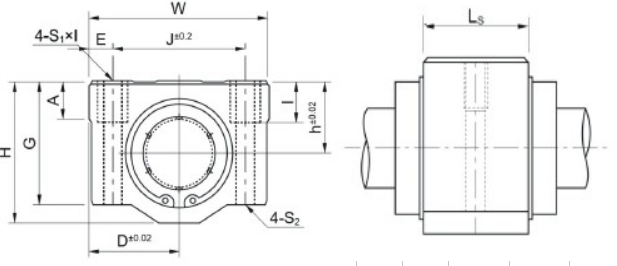

    主要尺寸
    Main Dimensions(mm)
    额定负荷
    Basic load rating
    重量
    Weight
    (gf)
    型号
    Part No.
    内装轴承Liner Bearing轴径
    Shaft
    Diameter
    hDWHGAJES1×IS2Ls动负荷
    Dynamic
    C N
    静负荷
    Static
    Co N
      SCE8SUULME8UUΦ811173422186245M4×8Ф3.414.426040040
      SCE12SUULME12UUΦ1215224430248335.5M5×10Ф4.320.341059082
      SCE16SUULME16UUΦ1619255039339367M5×12Ф4.322.37701,170122
      SCE20SUULME20UUΦ20212754413511407M6×12Ф5.228.38601,370176
      SCE25SUULME25UUΦ252638765241125411M8×18Ф740.49801,560400
      SCE30SUULME30UUΦ303039786049155810M8×18Ф748.415602,740570
      SCE40SUULME40UUΦ4040511027862208011M10×25Ф8.756.521504,0101320
      SCE50SUULME50UUΦ505261122102802510011M10×25Ф8.772.338207,9301900
