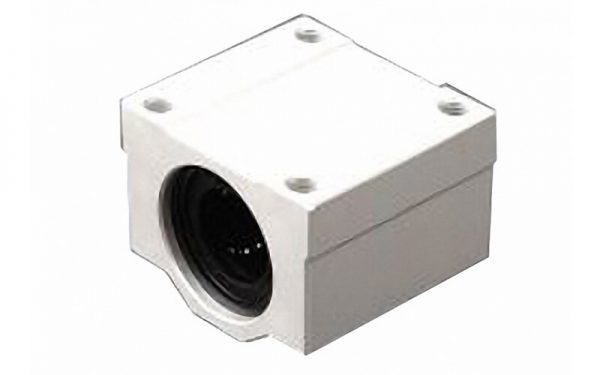

Linear Bearing Slide Unit SCE…UU
This type is a metric dimension series generally used in Europe.

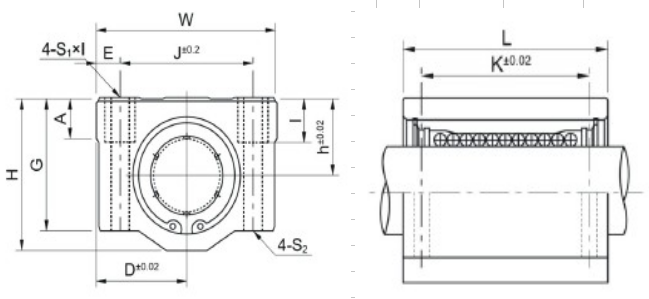

| 标准型 Standard | 主要尺寸 Main Dimensions（mm) | 额定负荷 Basic load rating | 重量 Weight (gf) | ||||||||||||||
| 型号 Part No. | 内装轴承Linear Bearing | 轴径 Shaft Diameter | h | D | W | H | G | A | J | E | S1×I | S2 | K | L | 动负荷 Dynamic C N | 静负荷 Static Co N | |
| SCE8UU | LME8UU | Φ8 | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 | M4×8 | Ф3.4 | 18 | 30 | 260 | 400 | 80 |
| SCE12UU | LME12UU | Φ12 | 15 | 22 | 44 | 30 | 24 | 8 | 33 | 5.5 | M5×10 | Ф4.3 | 21 | 35 | 410 | 590 | 118 |
| SCE16UU | LME16UU | Φ16 | 19 | 25 | 50 | 39 | 33 | 9 | 36 | 7 | M5×12 | Ф4.3 | 26 | 36 | 770 | 1,170 | 180 |
| SCE20UU | LME20UU | Φ20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | Ф5.2 | 26 | 39 | 860 | 1,370 | 245 |
| SCE25UU | LME25UU | Φ25 | 26 | 38 | 76 | 52 | 41 | 12 | 54 | 11 | M8×18 | Ф7 | 34 | 44 | 980 | 1,560 | 550 |
| SCE30UU | LME30UU | Φ30 | 30 | 39 | 78 | 60 | 49 | 15 | 58 | 10 | M8×18 | Ф7 | 40 | 50 | 1560 | 2,740 | 760 |
| SCE40UU | LME40UU | Φ40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | Ф8.7 | 50 | 67 | 2150 | 4,010 | 1700 |
| SCE50UU | LME50UU | Φ50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | Ф8.7 | 58 | 72 | 3820 | 7,930 | 2950 |
