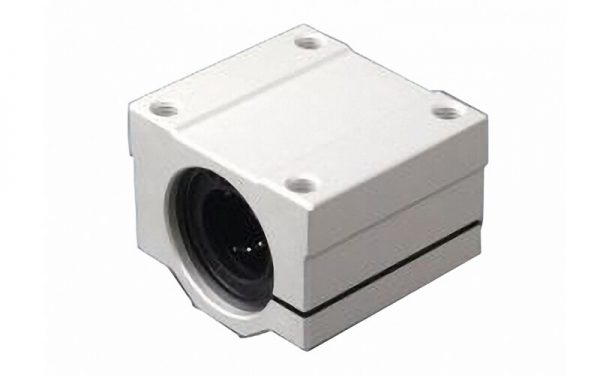

Linear Bearing Slide Unit SCJ…UU
This type is a metric dimension series generally used in Europe.

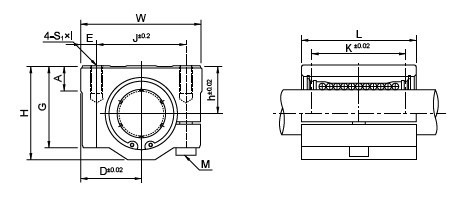

| 型号 Part No. | 内装轴承 Linear Bearing | 轴径 Shaft Diameter | 主要尺寸 Main Dimensions（mm) | 额定负荷 Basic load rating | 重量 Weight (gf) | ||||||||||||
| h | D | W | H | G | A | J | E | S1×I | K | L | M | 动负荷Dynamic C N | 静负荷 Static Co N | ||||
| SCJ10UU | LM10UUAJ | 10 | 13 | 20 | 40 | 26 | 21 | 8 | 28 | 6 | M5×12 | 21 | 35 | M5 | 372 | 549 | 90 |
| SCJ12UU | LM12UUAJ | 12 | 15 | 21 | 42 | 28 | 24 | 8 | 30.5 | 5.75 | M5×12 | 26 | 36 | M5 | 510 | 784 | 112 |
| SCJ13UU | LM13UUAJ | 13 | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 | M5×12 | 26 | 39 | M5 | 510 | 784 | 123 |
| SCJ16UU | LM16UUAJ | 16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5×12 | 34 | 44 | M5 | 774 | 1180 | 189 |
| SCJ20UU | LM20UUAJ | 20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | 40 | 50 | M5 | 882 | 1370 | 237 |
| SCJ25UU | LM25UUAJ | 25 | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8×18 | 50 | 67 | M6 | 980 | 1570 | 555 |
| SCJ30UU | LM30UUAJ | 30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8×18 | 58 | 72 | M6 | 1570 | 2740 | 685 |
| SCJ35UU | LM35UUAJ | 35 | 34 | 45 | 90 | 68 | 54 | 18 | 70 | 10 | M8×18 | 60 | 80 | M6 | 1670 | 3140 | 1,100 |
| SCJ40UU | LM40UUAJ | 40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | 60 | 90 | M8 | 2160 | 4020 | 1,600 |
| SCJ50UU | LM50UUAJ | 50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | 80 | 110 | M8 | 3820 | 7940 | 3,350 |
