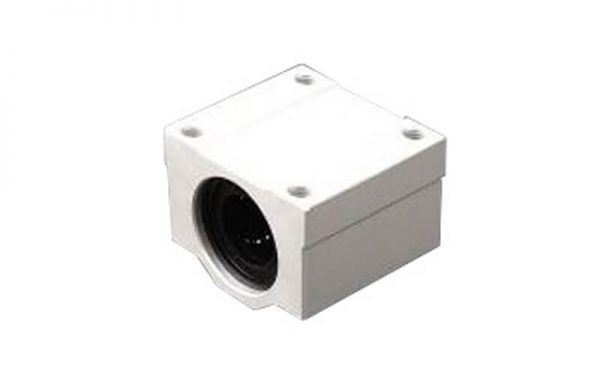

Linear Bearing Slide Unit SMA…UU
This type is a metric dimension series generally used in Europe.

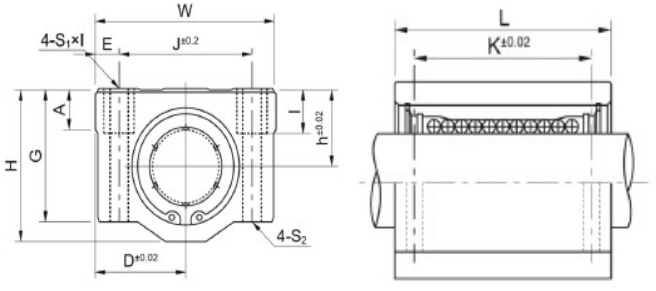

| 标准型 Standard | 主要尺寸 Main Dimensions（mm) | 额定负荷 Basic load rating | 重量 Weight (gf) | ||||||||||||||
| 型号 Part No. | 内装轴承Linear Bearing | 轴径 Shaft Diameter | h | D | W | H | G | A | J | E | S1×I | S2 | K | L | 动负荷 Dynamic C N | 静负荷 Static Co N | |
| SMA8UU | LM8UU | Φ8 | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 | M4×8 | Φ3.4 | 18 | 30 | 274 | 392 | 56 |
| SMA10UU | LM10UU | Φ10 | 13 | 20 | 40 | 26 | 21 | 8 | 28 | 6 | M5×12 | Φ4.3 | 21 | 35 | 372 | 549 | 90 |
| SMA12UU | LM12UU | Φ12 | 15 | 21 | 42 | 28 | 24 | 8 | 30.5 | 5.75 | M5×12 | Φ4.3 | 26 | 36 | 510 | 784 | 112 |
| SMA13UU | LM13UU | Φ13 | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 | M5×12 | Φ4.3 | 26 | 39 | 510 | 784 | 123 |
| SMA16UU | LM16UU | Φ16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5×12 | Φ4.3 | 34 | 44 | 774 | 1180 | 189 |
| SMA20UU | LM20UU | Φ20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | Φ5.2 | 40 | 50 | 882 | 1370 | 237 |
| SMA25UU | LM25UU | Φ25 | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8×18 | Φ7 | 50 | 67 | 980 | 1570 | 555 |
| SMA30UU | LM30UU | Φ30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8×18 | Φ7 | 58 | 72 | 1570 | 2740 | 685 |
| SMA35UU | LM35UU | Φ35 | 34 | 45 | 90 | 68 | 54 | 18 | 70 | 10 | M8×18 | Φ7 | 60 | 80 | 1670 | 3140 | 1100 |
| SMA40UU | LM40UU | Φ40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | Φ8.7 | 60 | 90 | 2160 | 4020 | 1600 |
| SMA50UU | LM50UU | Φ50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | Φ8.7 | 80 | 110 | 3820 | 7940 | 3350 |
