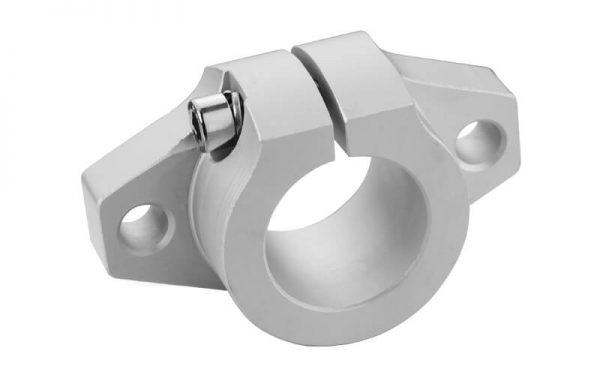

Shaft Support SHF

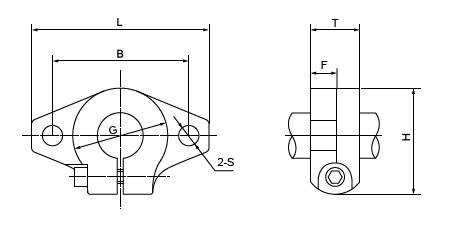

| 型号 Part No. | 轴径 Shaft Diameter | 尺寸Dimensions(mm) | 安装螺栓型号 | 夹紧螺栓型号 | 重量 Weight (gf) | ||||||
| L | T | F | B | G | H | S | Mounting bolt Part No. | Clamping bolt Part No. | |||
| SHF10 | Φ10 | 43 | 10 | 5 | 32 | 20 | 24 | 5.5 | M5 | M4 | 13 |
| SHF12 | Φ12 | 47 | 13 | 7 | 36 | 25 | 28 | 5.5 | M5 | M4 | 20 |
| SHF13 | Φ13 | 47 | 13 | 7 | 36 | 25 | 28 | 5.5 | M5 | M4 | 20 |
| SHF16 | Φ16 | 50 | 16 | 8 | 40 | 28 | 31 | 5.5 | M5 | M4 | 27 |
| SHF20 | Φ20 | 60 | 20 | 8 | 48 | 34 | 37 | 7 | M6 | M5 | 40 |
| SHF25 | Φ25 | 70 | 25 | 10 | 56 | 40 | 42 | 7 | M6 | M5 | 60 |
| SHF30 | Φ30 | 80 | 30 | 12 | 64 | 46 | 50 | 9 | M8 | M6 | 110 |
| SHF35 | Φ35 | 92 | 35 | 14 | 72 | 50 | 58 | 12 | M10 | M8 | 380 |
| SHF40 | Φ40 | 102 | 40 | 16 | 80 | 56 | 67 | 12 | M10 | M10 | 510 |
| SHF50 | Φ50 | 122 | 50 | 19 | 96 | 70 | 83 | 14 | M12 | M12 | 890 |
| SHF60 | Φ60 | 140 | 60 | 23 | 112 | 82 | 95 | 14 | M12 | M12 | 1500 |
