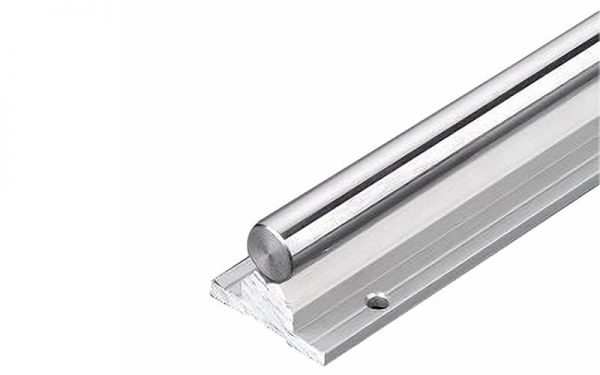

Support Rail Units TBS

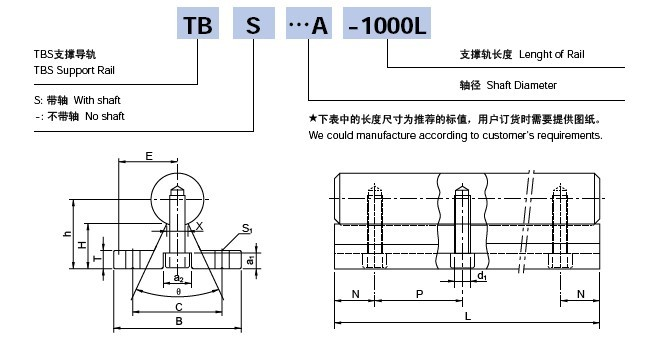

| 型号 Part No. | 轴径 Shaft Diameter | 尺寸 Nominal Dimensions(mm) | 重量 Weight (kgf/m) | |||||||||||
| E | h | B | H | T | X | C | Θ | S1 | a1 | a2 | d1 | |||
| TBS16A | 16 | 25 | 22 | 50 | 14.84 | 6 | 8 | 37 | 60° | 5.5 | 6 | 9.5 | 5.5 | 2.45 |
| TBS20A | 20 | 27.5 | 29 | 55 | 19.64 | 8 | 8 | 40 | 50° | 5.5 | 6.5 | 11 | 6.6 | 3.6 |
| TBS25A | 25 | 32.5 | 32 | 65 | 20 | 10 | 8 | 45 | 50° | 6.6 | 6.5 | 11 | 6.6 | 5.6 |
| TBS30A | 30 | 37.5 | 36.5 | 75 | 22.28 | 12 | 10.3 | 55 | 50° | 6.6 | 8.5 | 14 | 9 | 8 |
| 型号 Part No. | 支撑轨标准长度和主要尺寸 Support Rail Standard length and Dimensions | |||||||||||||
| SBS16A | SBS20A | SBS25A | SBS30A | |||||||||||
| Standard Length L | 190 | 340 | 250 | 450 | ||||||||||
| 340 | 640 | 450 | 850 | |||||||||||
| 640 | 940 | 850 | 1250 | |||||||||||
| 940 | 1240 | 1250 | 1450 | |||||||||||
| N | 20 | 20 | 25 | 25 | ||||||||||
| P | 150 | 150 | 200 | 200 | ||||||||||
| Max.Length | 1,390 | 1,390 | 1,850 | 1,850 | ||||||||||
