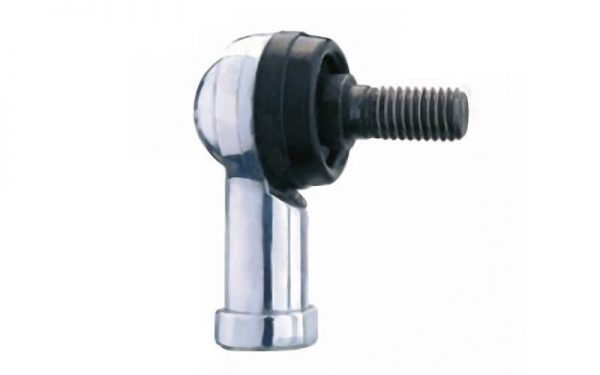

Material:
Housing,High strength zinc alloy;
Ball,bearing steel GCr15,equivalent to steel SAE 52100
Shank,alloy steel 40Cr;
Dust Cover,NBR rubber
Left hand thread,please add suffix’L’,e.g.LHSA10L-RS.
Grease is seales in the boot,high wear resistance
Work Temperature,-40℃-120℃

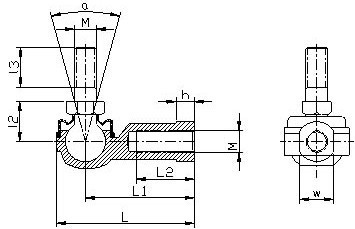

| Part No. | M | L | L1 | L2 | l2 | l3 | W | D1 | h | a |
| LHSA5-RS | M5X0.75 | 38.5 | 30 | 16 | 12 | 10 | 10 | 10 | 5 | 17 |
| LHSA6-RS | M6X1.0 | 38.5 | 30 | 16 | 12 | 10 | 10 | 10 | 5 | 17 |
| LHSA8-RS | M8X1.25 | 48 | 36 | 19 | 14.5 | 12.5 | 13 | 13 | 5 | 18 |
| LHSA10-RS | M10X1.25 | 57 | 43 | 23 | 16 | 17 | 15 | 15 | 6.5 | 19 |
| LHSA12-RS | M12X1.75 | 67 | 50 | 27 | 20 | 20 | 17.5 | 17.5 | 6.5 | 20 |
| LHSA14-RS | M14X2.0 | 76 | 57 | 30 | 22.5 | 22 | 20 | 20 | 8 | 20 |
| LHSA16-RS | M16X1.5 | 84 | 64 | 32 | 36.5 | 23 | 22 | 22 | 8 | 20 |
| LHSA18-RS | M18X1.5 | 93 | 71 | 34 | 41.5 | 25 | 25 | 25 | 10 | 20 |
| LHSA20-RS | M20X1.5 | 99 | 77 | 35 | 41 | 25 | 28 | 28 | 10 | 20 |
| LHSA22-RS | M22X1.5 | 109 | 84 | 41 | 42 | 26 | 30 | 30 | 12 | 20 |
