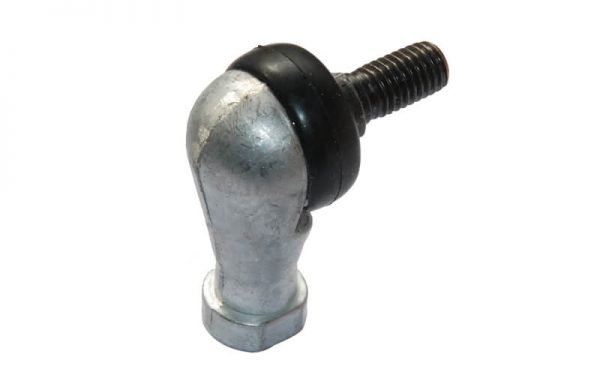

Housing,High strength zinc alloy;
Ball,bearing steel GCr15,equivalent to steel SAE 52100 ;
Shank,alloy steel 40Cr;
Dust Cover,NBR rubber
Left hand thread,please add suffix’L’,e.g.SQL16D
Grease is seales in the boot,high wear resistance
Work Temperature,-40°C-120°C
All dimension are in mm.

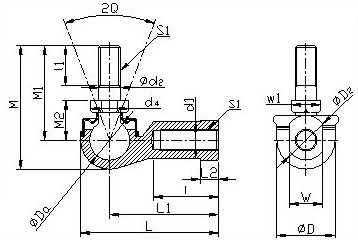

| Part No. | L | D | M | Thread S1 | L1 | l | L 2 | d1 | D2 | W | d2 | M1 | M2 | l1 | d4 | Da | Static load capacity kN | Yield strength kN |
| SQ5D | 35 | 16 | 29.0 | M5X0.8 | 27 | 14 | 4.0 | 9 | 11 | 9 | 5 | 21 | 10 | 8 | 9 | 11.112 | 9.22 | 2.25 |
| SQ6D | 40 | 19 | 35.5 | M6X1 | 30 | 14 | 5.0 | 10 | 13 | 11 | 6 | 26 | 11 | 11 | 10 | 12.700 | 12.10 | 3.53 |
| SQ8D | 48 | 23 | 42.5 | M8X1.25 | 36 | 17 | 5.0 | 12.5 | 16 | 14 | 8 | 31 | 14 | 12 | 12 | 15.875 | 19.10 | 6.57 |
| SQ10D | 57 | 27 | 50.5 | M10X1.25 | 43 | 21 | 6.5 | 15 | 19 | 17 | 10 | 37 | 17 | 15 | 14 | 19.050 | 27.50 | 10.70 |
| SQ10BD | 57 | 27 | 56.5 | M10X1.5 | 43 | 21 | 6.5 | 15 | 19 | 17 | 10 | 43 | 17 | 21 | 14 | 19.050 | 27.50 | 10.70 |
| SQ12D | 66 | 31 | 57.5 | M12X1.25 | 50 | 25 | 6.5 | 17.5 | 22 | 19 | 12 | 42 | 19 | 17 | 19 | 22.225 | 37.50 | 16.40 |
| SQ12BD | 66 | 31 | 64.5 | M12X1.75 | 50 | 25 | 6.5 | 17.5 | 22 | 19 | 12 | 49 | 19 | 24 | 19 | 22.225 | 37.50 | 16.40 |
| SQ14D | 75 | 35 | 73.5 | M14X1.5 | 57 | 26 | 8.0 | 20 | 25 | 22 | 14 | 56 | 21.5 | 22 | 19 | 25.400 | 48.90 | 19.80 |
| SQ14BD | 75 | 35 | 79.5 | M14X2 | 57 | 26 | 8.0 | 20 | 25 | 22 | 14 | 62 | 21.5 | 28 | 19 | 25.400 | 48.90 | 19.80 |
| SQ16D | 84 | 39 | 79.5 | M16X1.5 | 64 | 32 | 8.0 | 22 | 27 | 22 | 16 | 60 | 23.5 | 23 | 22 | 25.400 | 48.90 | 26.90 |
| SQ16BD | 84 | 39 | 85.5 | M16X2 | 64 | 32 | 8.0 | 22 | 27 | 22 | 16 | 66 | 23.5 | 29 | 22 | 25.400 | 48.90 | 26.90 |
| SQ18D | 93 | 44 | 90.0 | M18X1.5 | 71 | 34 | 10.0 | 25 | 31 | 27 | 18 | 68 | 26.5 | 25 | 23 | 28.575 | 61.90 | 33.30 |
| SQ20D | 99 | 44 | 90.0 | M20X1.5 | 77 | 35 | 10.0 | 27.5 | 34 | 30 | 20 | 68 | 27 | 25 | 29 | 28.575 | 61.90 | 45.90 |
| SQ22D | 109 | 50 | 95.0 | M22X1.5 | 84 | 41 | 12.0 | 30 | 37 | 32 | 22 | 70 | 28 | 26 | 27 | 31.750 | 75.40 | 48.00 |
