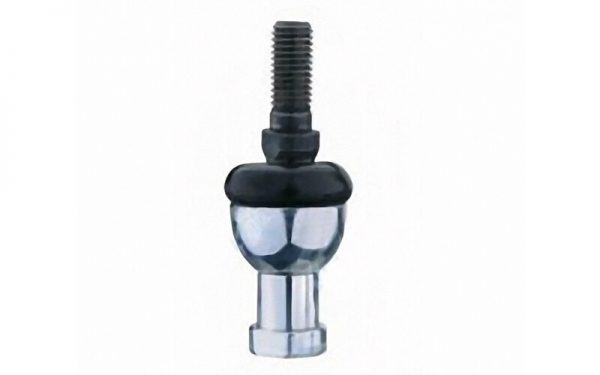

Material,
Housing,High strength zinc alloy;
Ball,bearing steel GCr15,equivalent to steel SAE52100 ;
Shank,alloy steel 40Cr;
Dust Cover,NBR rubber
Left hand thread,please add suffix’L’,e.g.SQZ16LRS
Grease is seales in the boot,high wear resistance
Work Temperature,-40°C-120°C
All dimension are in mm.

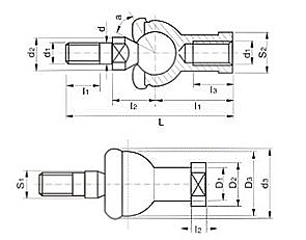

| Part No. | d | d1 | d2 | d3 | l1 | l2 | S1 | L | L1 | L2 | L3 | D1 | D2 | D3 | S2 | a | Load ratings kN | Weight kg |
| SQZ5RS | 5 | M5x0.8 | 9 | 20 | 8 | 11 | 7 | 46 | 24 | 4.0 | 12 | 9 | 11 | 17 | 9 | 15 | 2.8 | 0.025 |
| SQZ6RS | 6 | M6x1.0 | 10 | 20 | 11 | 12.2 | 8 | 55.2 | 28 | 5.0 | 15 | 10 | 13 | 20 | 11 | 15 | 3.7 | 0.041 |
| SQZ8RS | 8 | M8x1.25 | 12 | 24 | 12 | 16 | 10 | 65 | 32 | 5.0 | 16 | 12.5 | 16 | 24 | 14 | 15 | 5.8 | 0.075 |
| SQZ10RS | 10 | M10x1.25 | 14 | 30 | 15 | 19.5 | 11 | 74.5 | 35 | 6.5 | 18 | 15 | 19 | 28 | 17 | 15 | 8.4 | 0.120 |
| SQZ10RS-1 | 10 | M10x1.5 | 14 | 30 | 21 | 19.5 | 11 | 80.5 | 35 | 6.5 | 18 | 15 | 19 | 28 | 17 | 15 | 8.4 | 0.120 |
| SQZ12RS | 12 | M12x1.25 | 17 | 32 | 17 | 21 | 15 | 84 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 19 | 15 | 11.0 | 0.180 |
| SQZ12RS-1 | 12 | M12x1.75 | 17 | 32 | 24 | 21 | 15 | 91 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 19 | 15 | 11.0 | 0.180 |
| SQZ14RS | 14 | M14x1.5 | 19 | 38 | 22 | 23.5 | 17 | 103 | 45 | 8.0 | 25 | 20 | 25 | 36 | 22 | 11 | 15.0 | 0.270 |
| SQZ14RS-1 | 14 | M14x2.0 | 19 | 38 | 28 | 23.5 | 17 | 109 | 45 | 8.0 | 25 | 20 | 25 | 36 | 22 | 11 | 15.0 | 0.270 |
| SQZ16RS | 16 | M16x1.5 | 22 | 44 | 23 | 25.5 | 19 | 112 | 50 | 8.0 | 27 | 22 | 27 | 40 | 22 | 11 | 15.0 | 0.360 |
| SQZ16RS-1 | 16 | M16x2.0 | 22 | 44 | 29 | 25.5 | 19 | 118 | 50 | 8.0 | 27 | 22 | 27 | 40 | 22 | 11 | 15.0 | 0.360 |
| SQZ18RS | 18 | M18x1.5 | 23 | 45 | 25 | 31 | 20 | 130.5 | 58 | 10.0 | 32 | 25 | 31 | 45 | 27 | 11 | 19.0 | 0.540 |
| SQZ20RS | 20 | M20x1.5 | 27 | 50 | 25 | 29 | 24 | 133 | 63 | 10.0 | 38 | 27.5 | 34 | 45 | 30 | 7.5 | 19.0 | 0.570 |
| SQZ22RS | 22 | M22x1.5 | 27 | 52 | 26 | 33 | 24 | 145 | 70 | 12.0 | 43 | 30 | 37 | 50 | 32 | 7.5 | 23.0 | 0.760 |
